048050 DODGE - F4B-UN2-400

Brand - DODGE
Item Number - 048050 DODGE - F4B-UN2-400

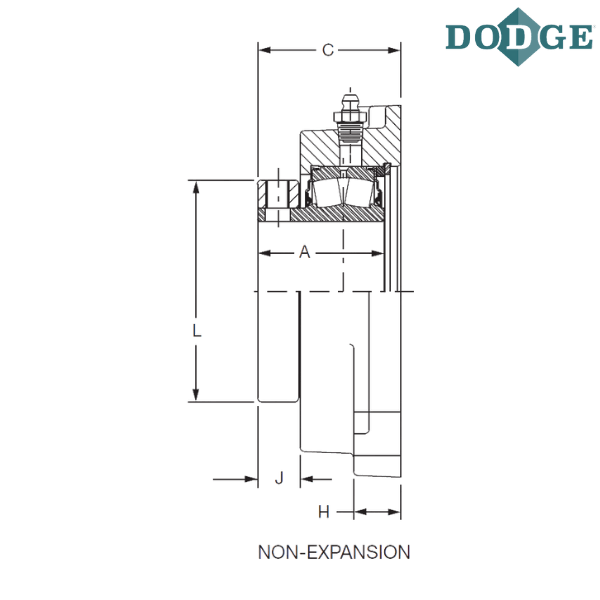

Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22220
Shaft Size (inch) - 4
Part Name - F4B-UN2-400

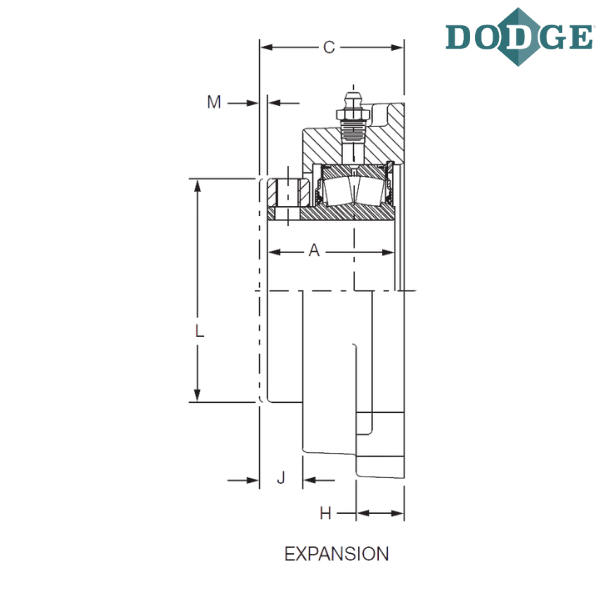

Part Number (Expansion) - 048067
Part Name (Expansion) - F4B-UN2-400E
Approximate Weight (lbs) - 41

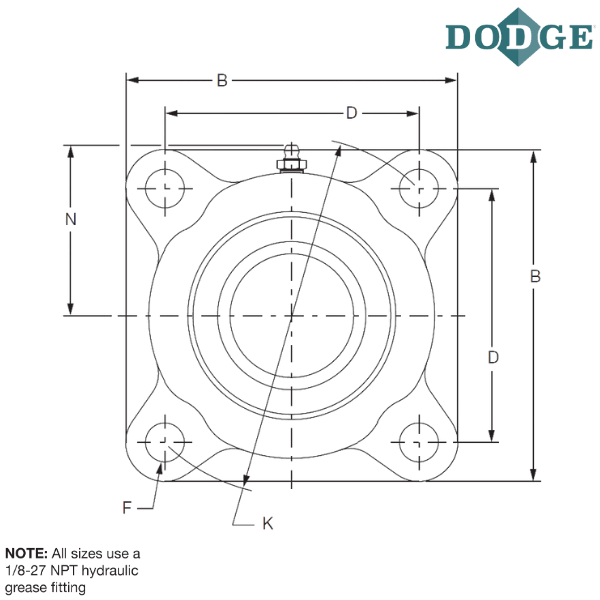

Length Through Bore (A) inch - 3.33
Overall Length (B) inch - 9.47
Thickness (C) inch - 3.69
Bolt Center to Center Length (D) inch - 7.63
F-Bolt Diameter (inch) - 0.875
H (inch) - 1.06
J (inch) - 1.05
K (inch) - 10.75
L (inch) - 6.47
Total Expansion (E) inch - 0.21875
N (inch) - 4.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

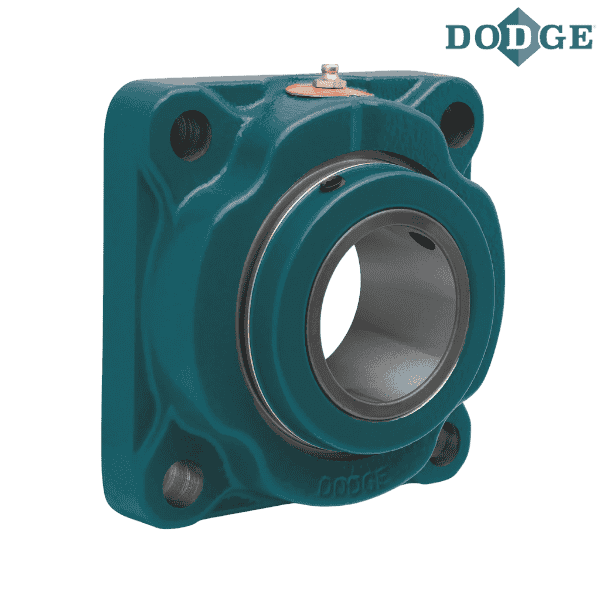

** Images are for representation purposes only
