048040 DODGE - F4B-UN2-203

Brand - DODGE
Item Number - 048040 DODGE - F4B-UN2-203

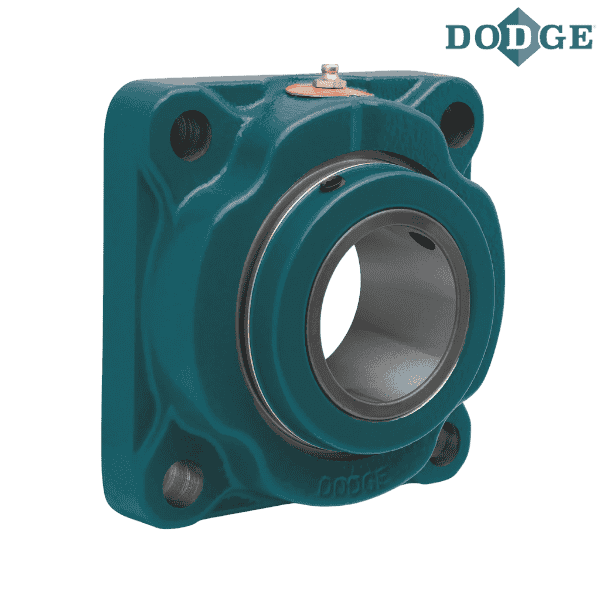

Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22211
Shaft Size (inch) - 2.1875
Part Name - F4B-UN2-203
Part Number (Expansion) - 048057
Part Name (Expansion) - F4B-UN2-203E
Approximate Weight (lbs) - 8.4

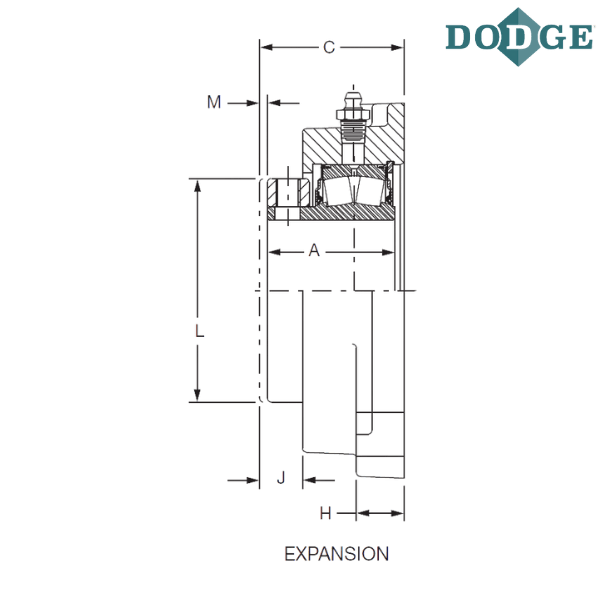

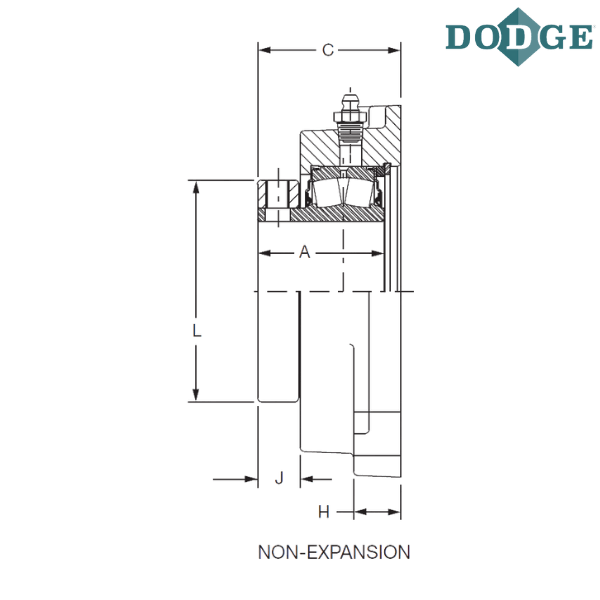

Length Through Bore (A) inch - 2

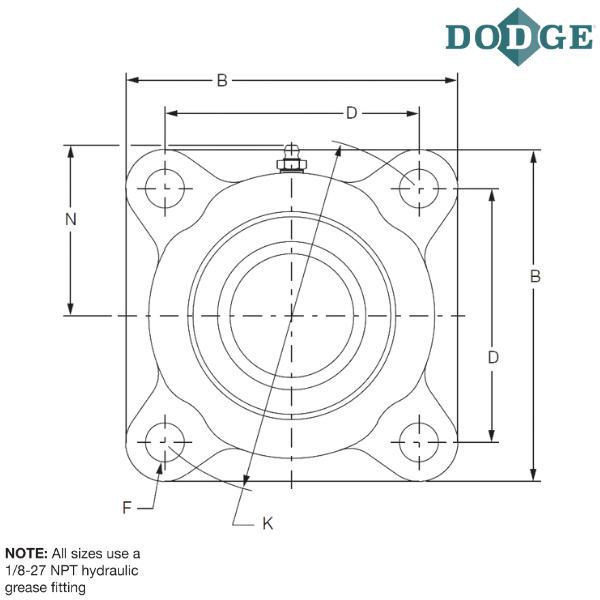

Overall Length (B) inch - 5.88
Thickness (C) inch - 2.27
Bolt Center to Center Length (D) inch - 4.5
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.75
J (inch) - 0.67
K (inch) - 6.38
L (inch) - 3.5
Total Expansion (E) inch - 0.15625
N (inch) - 3.06
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
