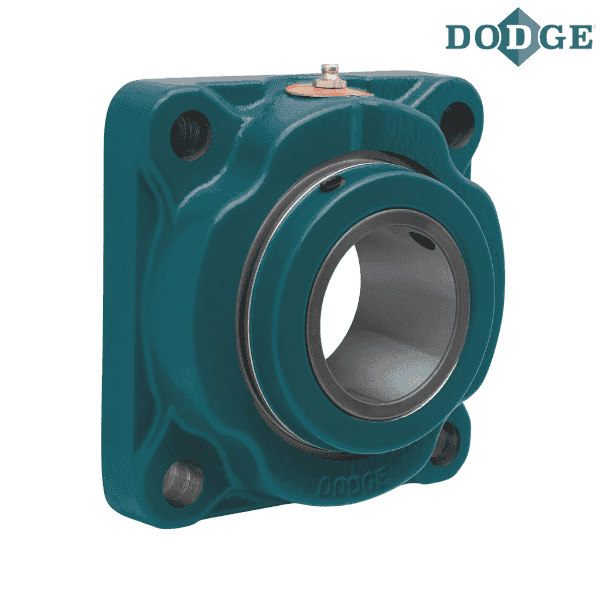

048039 DODGE - F4B-UN2-200

Brand - DODGE
Item Number - 048039 DODGE - F4B-UN2-200
Category - UNISPHERE II Flange Bearing - Inch 4-Bolt (Non-Expansion)
Bearing - 22210
Shaft Size (inch) - 2
Part Name - F4B-UN2-200
Part Number (Expansion) - 048056
Part Name (Expansion) - F4B-UN2-200E
Approximate Weight (lbs) - 6.7

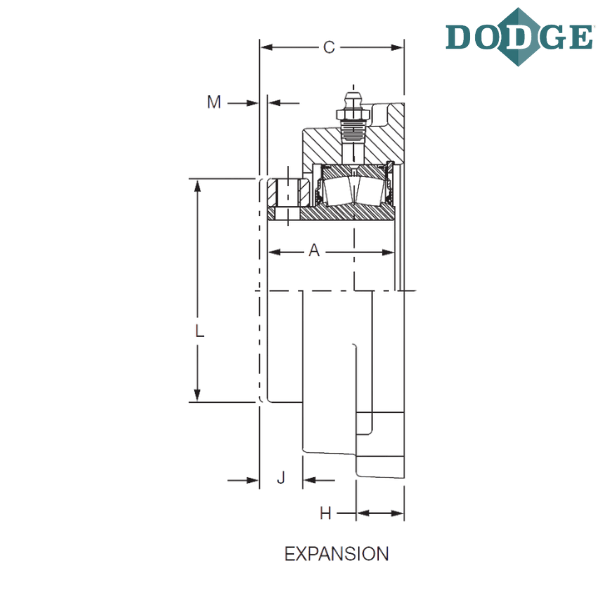

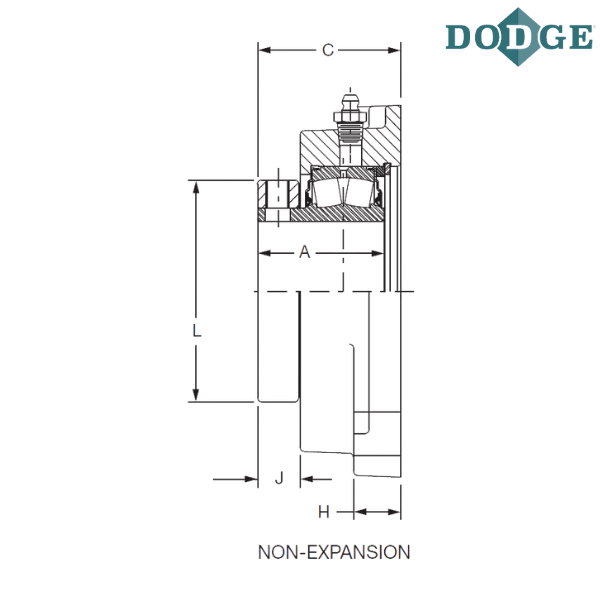

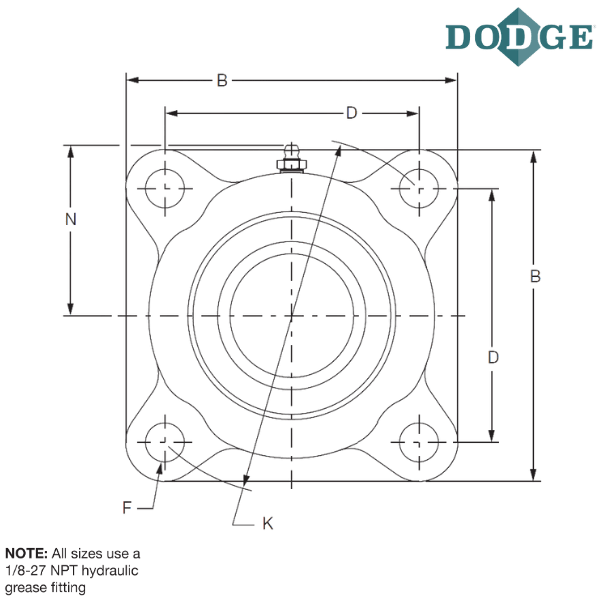

Length Through Bore (A) inch - 1.91
Overall Length (B) inch - 5.31
Thickness (C) inch - 2.17
Bolt Center to Center Length (D) inch - 4.06
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.69
J (inch) - 0.7
K (inch) - 5.75
L (inch) - 3.25
Total Expansion (E) inch - 0.15625
N (inch) - 2.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
