048010 DODGE - P2B-UN2-212

Brand - DODGE
Item Number - 048010 DODGE - P2B-UN2-212
Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22215
Shaft Size (inch) - 2.75
Part Name - P2B-UN2-212
Part Number (Expansion) - 048027
Part Name (Expansion) - P2B-UN2-212E
Approximate Weight (lbs) - 19

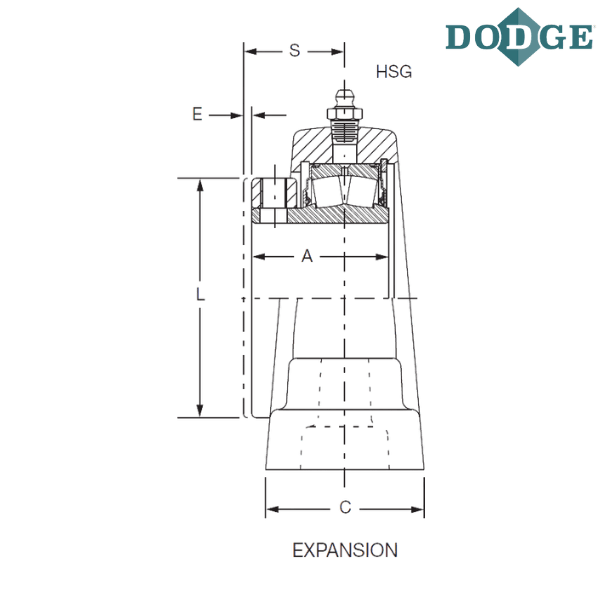

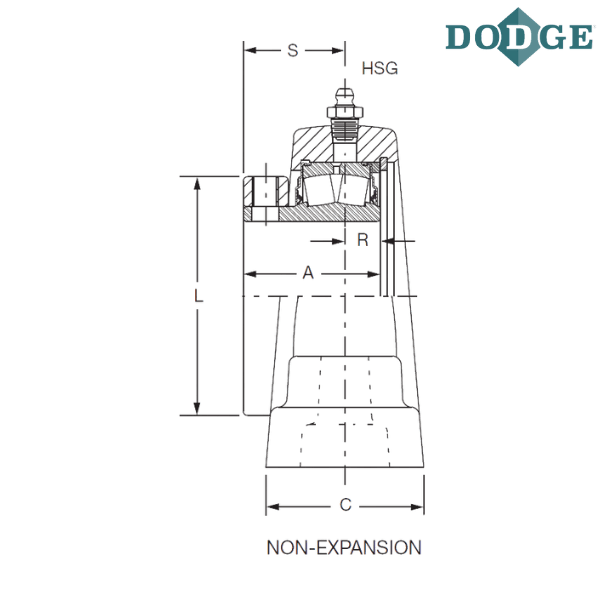

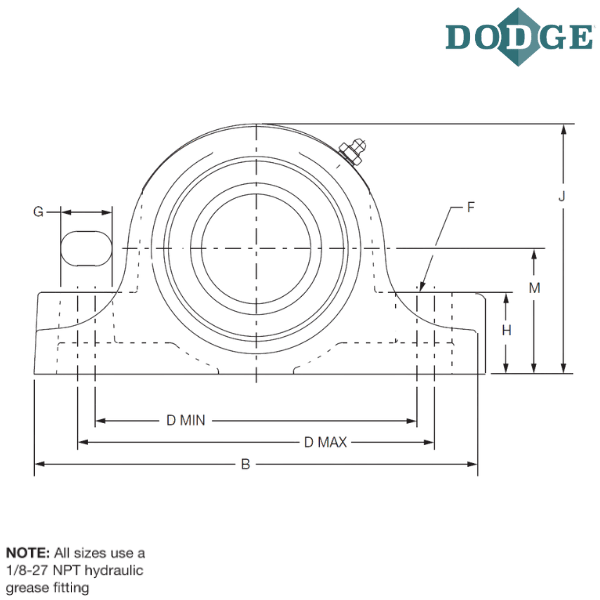

Length Through Bore (A) inch - 2.45
Overall Length (B) inch - 10.44
Width (C) inch - 2.56
Bolt to Bolt Minimum Distance (D min) inch - 7.81
Bolt to Bolt Maximum Distance (D max) inch - 8.44
Total Expansion (E) inch - 0.1875
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.13
H (inch) - 2.25
Overall Height (J) inch - 6.44
L (inch) - 4.72
Base to Center Height (M) inch - 3.25
R (inch) - 0.77
S (inch) - 1.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

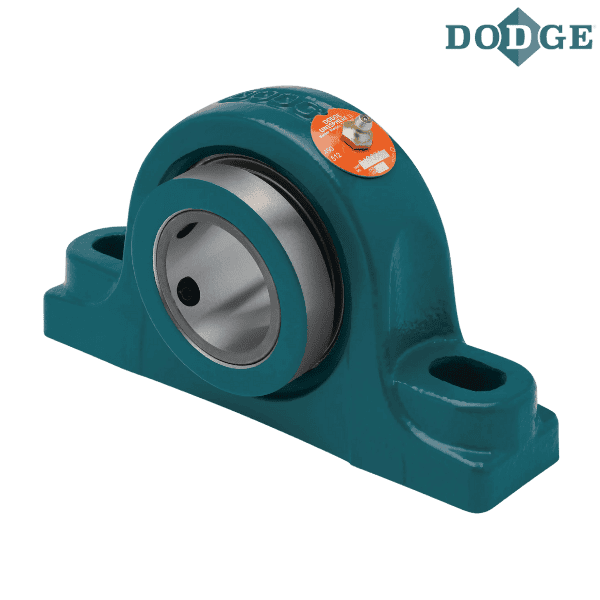

** Images are for representation purposes only
