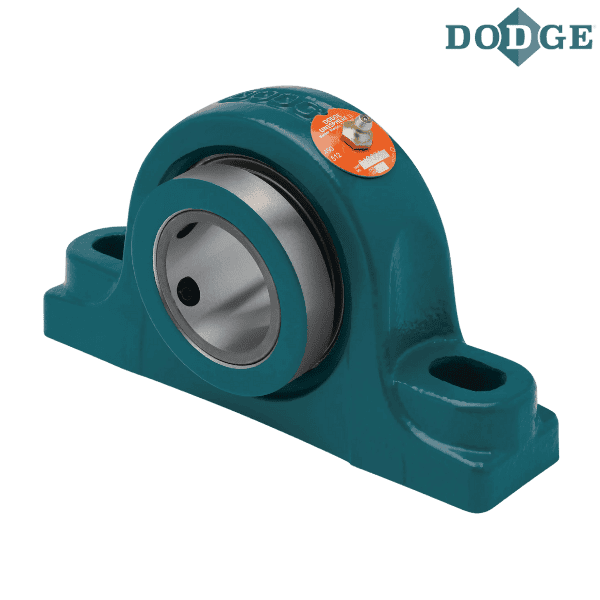

048009 DODGE - P2B-UN2-211

Brand - DODGE
Item Number - 048009 DODGE - P2B-UN2-211
Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22215
Shaft Size (inch) - 2.6875
Part Name - P2B-UN2-211
Part Number (Expansion) - 048026
Part Name (Expansion) - P2B-UN2-211E
Approximate Weight (lbs) - 19.3

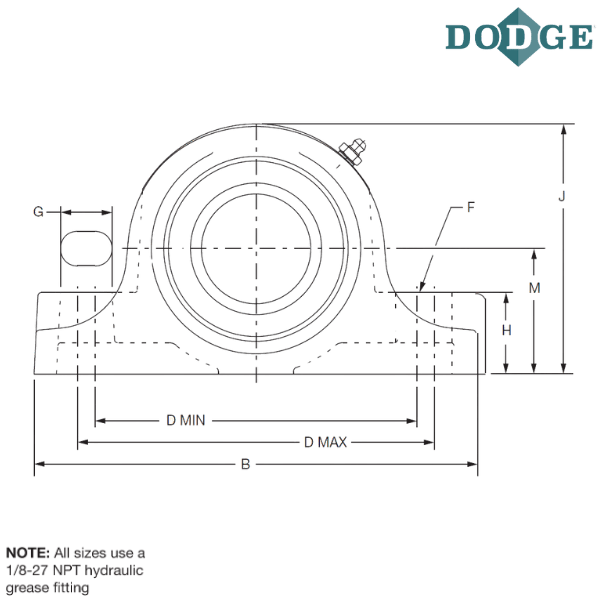

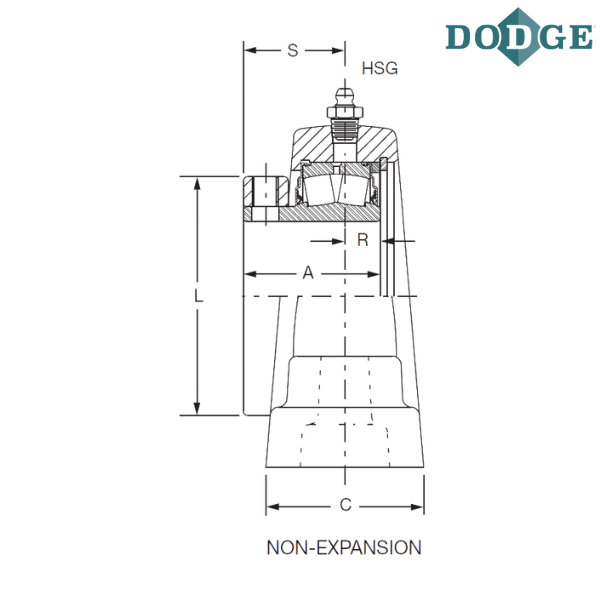

Length Through Bore (A) inch - 2.45
Overall Length (B) inch - 10.44
Width (C) inch - 2.56
Bolt to Bolt Minimum Distance (D min) inch - 7.81
Bolt to Bolt Maximum Distance (D max) inch - 8.44

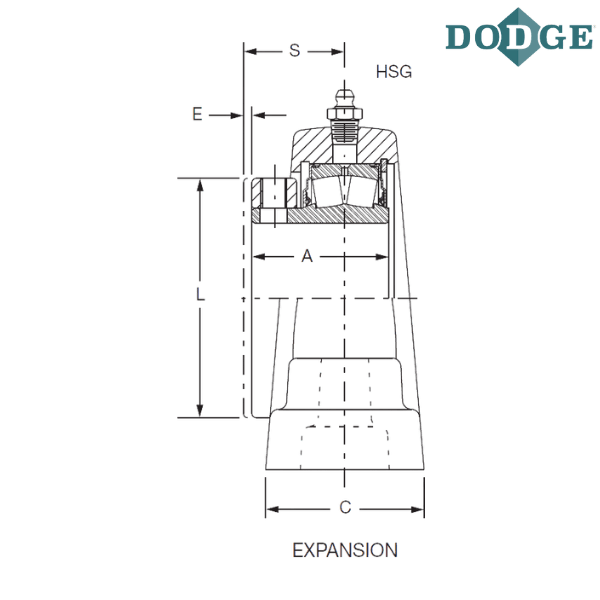

Total Expansion (E) inch - 0.1875
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.13
H (inch) - 2.25
Overall Height (J) inch - 6.44
L (inch) - 4.72
Base to Center Height (M) inch - 3.25
R (inch) - 0.77
S (inch) - 1.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
