048004 DODGE - P2B-UN2-115

Brand - DODGE
Item Number - 048004 DODGE - P2B-UN2-115

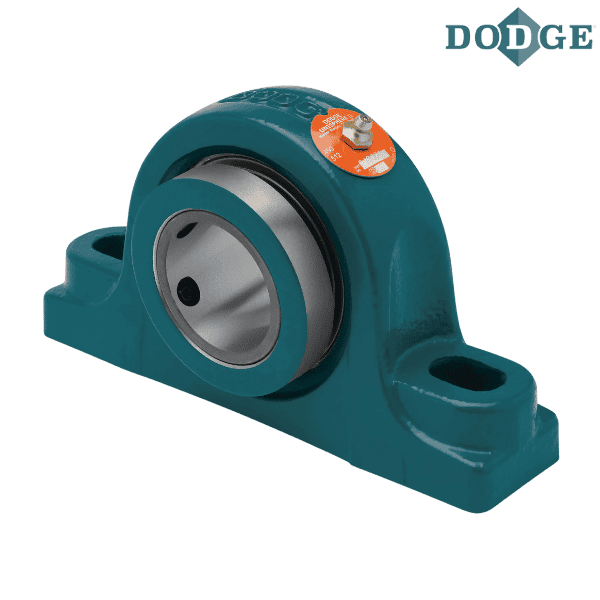

Category - UNISPHERE II Pillow Block - Inch (Non-Expansion)
Bearing - 22210
Shaft Size (inch) - 1.9375
Part Name - P2B-UN2-115
Part Number (Expansion) - 048021
Part Name (Expansion) - P2B-UN2-115E
Approximate Weight (lbs) - 8

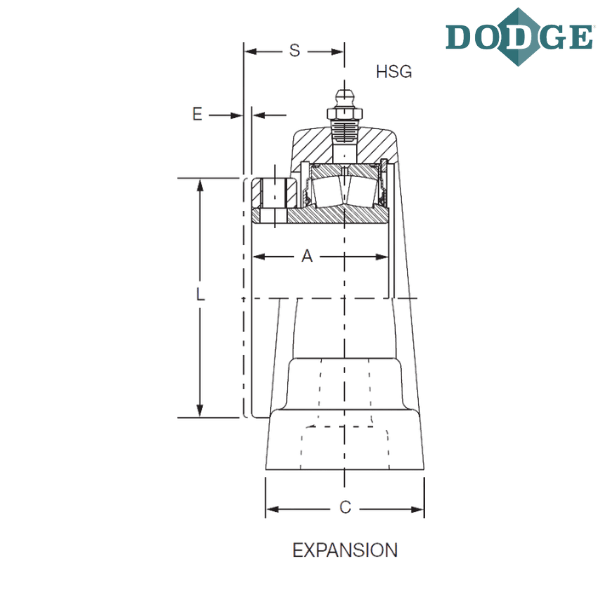

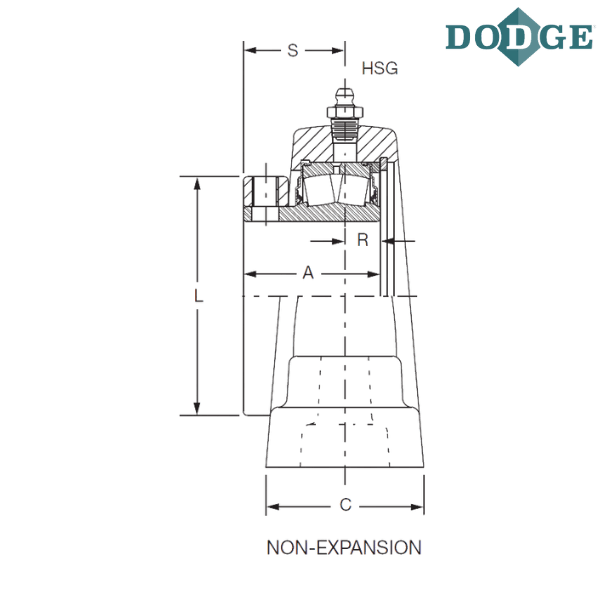

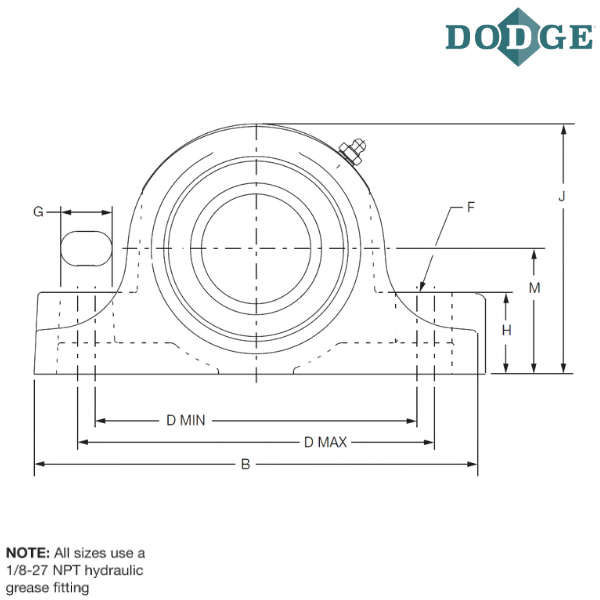

Length Through Bore (A) inch - 1.91
Overall Length (B) inch - 8.38
Width (C) inch - 2.06
Bolt to Bolt Minimum Distance (D min) inch - 5.94
Bolt to Bolt Maximum Distance (D max) inch - 6.69
Total Expansion (E) inch - 0.15625
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.06
H (inch) - 1.38
Overall Height (J) inch - 4.56
L (inch) - 3.25
Base to Center Height (M) inch - 2.25
R (inch) - 0.47
S (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II

** Images are for representation purposes only
