Description
Brand - DODGE
Item Number - 047682 DODGE - H3268-SNP-1208
Category - USDAF SNP Adapter Assembly
Housing - 3268
Bearing Number - 23268K
SNP Number - H3268-SNP-1208
Approximate Weight (kg) - 128.2

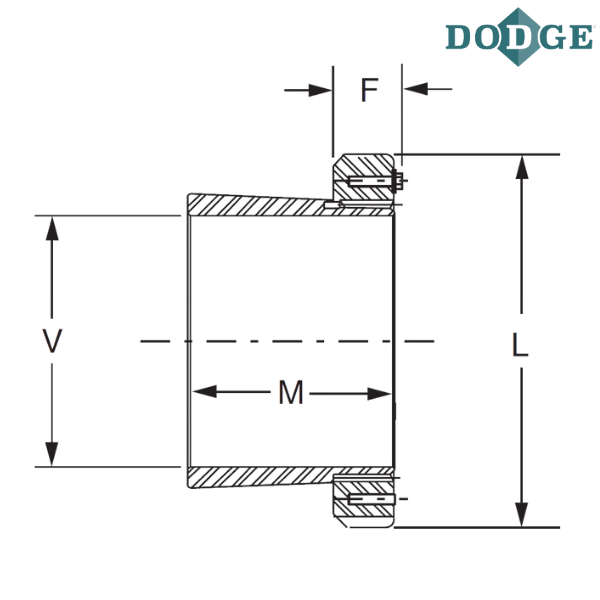

Shaft Size (V) inch - 12.5
Outer Diameter (L) inch - 15.76
F (inch) - 2.16
M (inch) - 11.12
Notes :
H32 - Adapter Series for 23200K Series Bearings
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
