Description
Brand - DODGE
Item Number - 047645 DODGE - H3176-SNP-1400
Category - USDAF SNP Adapter Assembly
Housing - 3176
Bearing Number - 23176K
SNP Number - H3176-SNP-1400
Approximate Weight (kg) - 121.1

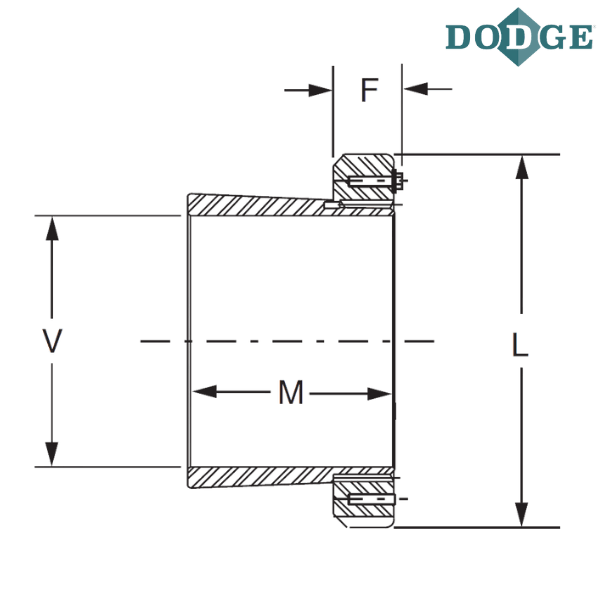

Shaft Size (V) inch - 14
Outer Diameter (L) inch - 17.76
F (inch) - 2.36
M (inch) - 10.06
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
