Description
Brand - DODGE
Item Number - 047642 DODGE - H3168-SNP-1208
Category - USDAF SNP Adapter Assembly
Housing - 3168
Bearing Number - 23168K
SNP Number - H3168-SNP-1208
Approximate Weight (kg) - 113.8

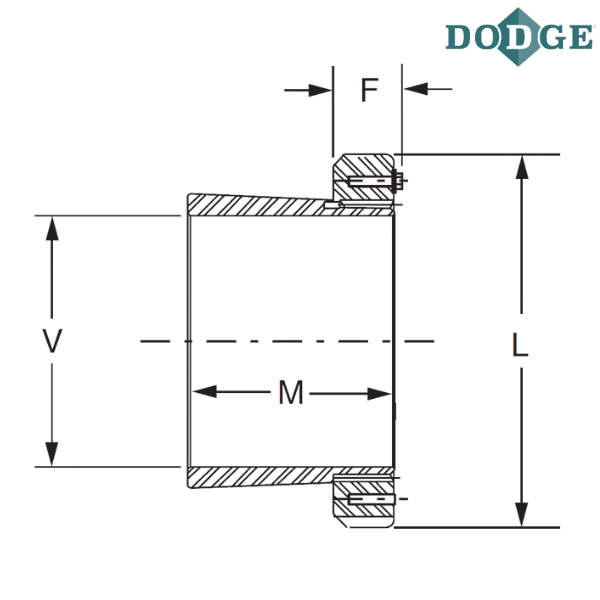

Shaft Size (V) inch - 12.5
Outer Diameter (L) inch - 15.76
F (inch) - 2.16
M (inch) - 9.78
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
