Description
Brand - DODGE
Item Number - 047638 DODGE - H3160-SNP-1015
Category - USDAF SNP Adapter Assembly
Housing - 3160
Bearing Number - 23160K
SNP Number - H3160-SNP-1015
Approximate Weight (kg) - 65

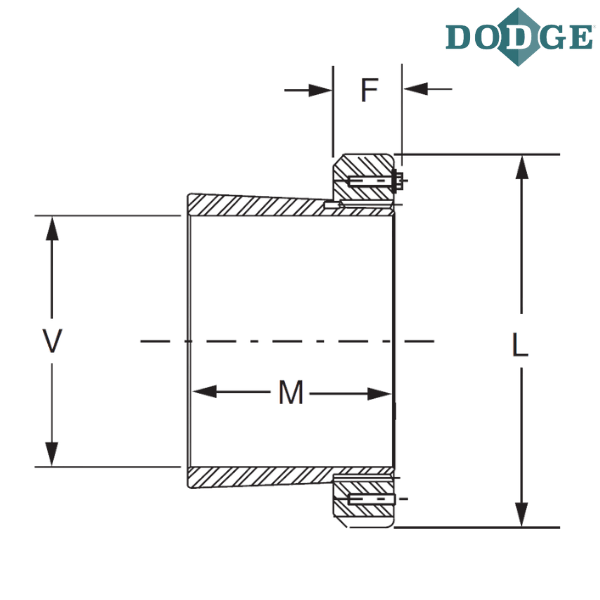

Shaft Size (V) inch - 10.9375
Outer Diameter (L) inch - 14.19
F (inch) - 1.94
M (inch) - 8.37
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
