Description
Brand - DODGE
Item Number - 047637 DODGE - H3156-SNP-1008
Category - USDAF SNP Adapter Assembly
Housing - 3156
Bearing Number - 23156K
SNP Number - H3156-SNP-1008
Approximate Weight (kg) - 28.4

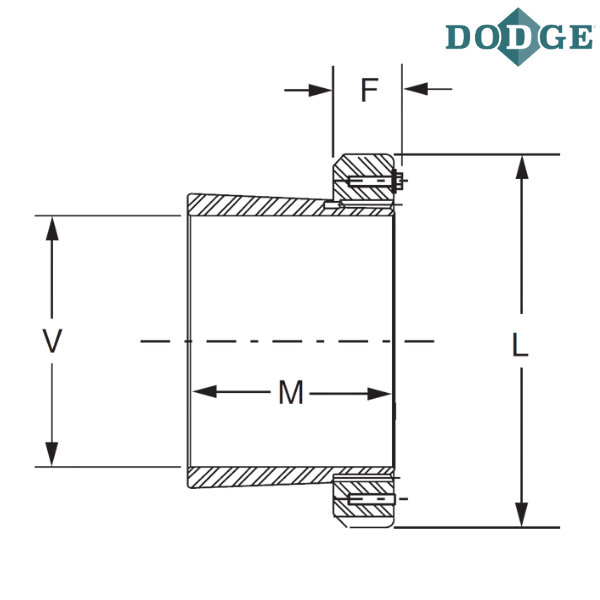

Shaft Size (V) inch - 10.5
Outer Diameter (L) inch - 13.01
F (inch) - 1.85
M (inch) - 7.76
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
