Description
Brand - DODGE
Item Number - 047636 DODGE - SNP3084-1512
Category - USDAF SNP Adapter Assembly
Housing - 84
Bearing Number - 23084K
SNP Number - SNP3084-1512
Approximate Weight (kg) - 105

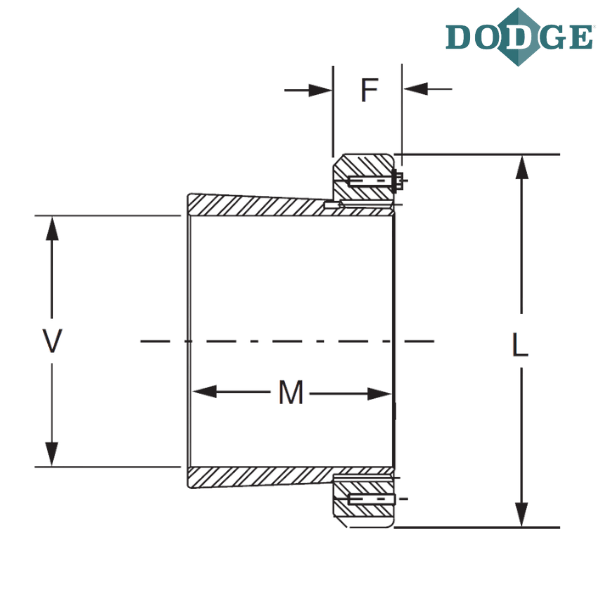

Shaft Size (V) inch - 15.75
Outer Diameter (L) inch - 19.32
F (inch) - 2.52
M (inch) - 8.49
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
** Images are for representation purposes only
