Description
Brand - DODGE
Item Number - 047635 DODGE - SNP3068-1208
Category - USDAF SNP Adapter Assembly
Housing - 68
Bearing Number - 23068K
SNP Number - SNP3068-1208
Approximate Weight (kg) - 75.4

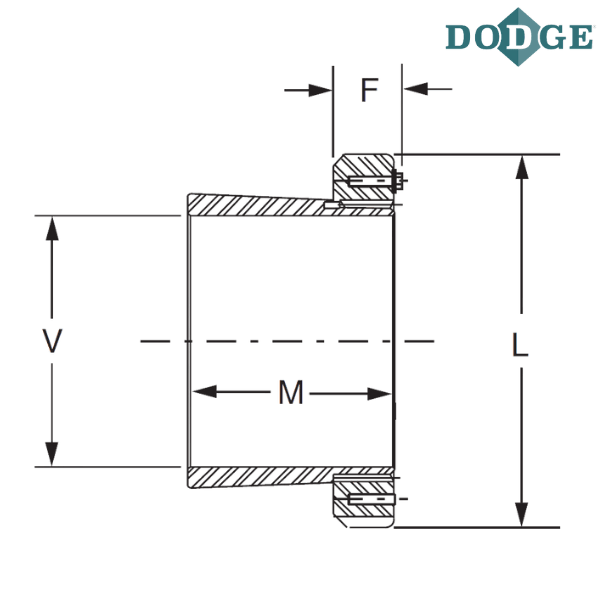

Shaft Size (V) inch - 12.5
Outer Diameter (L) inch - 15.76
F (inch) - 2.16
M (inch) - 7.53
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
** Images are for representation purposes only
