Description
Brand - DODGE
Item Number - 047630 DODGE - SNP3152-907
Category - USDAF SNP Adapter Assembly
Housing - 3152
Bearing Number - 23152K
SNP Number - SNP3152-907
Approximate Weight (kg) - 44

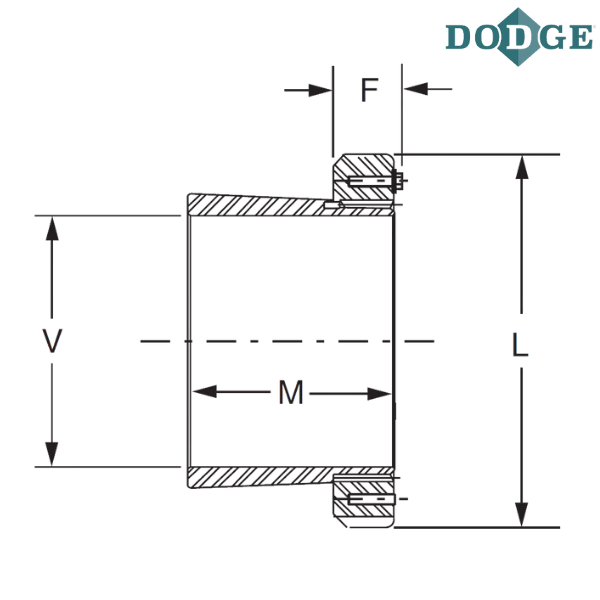

Shaft Size (V) inch - 9.4375
Outer Diameter (L) inch - 12.19
F (inch) - 1.77
M (inch) - 7.58
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
** Images are for representation purposes only
