046769 DODGE - NWKIT-USAF-38

Brand - DODGE
Item Number - 046769 DODGE - NWKIT-USAF-38
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-38
Housing - 238

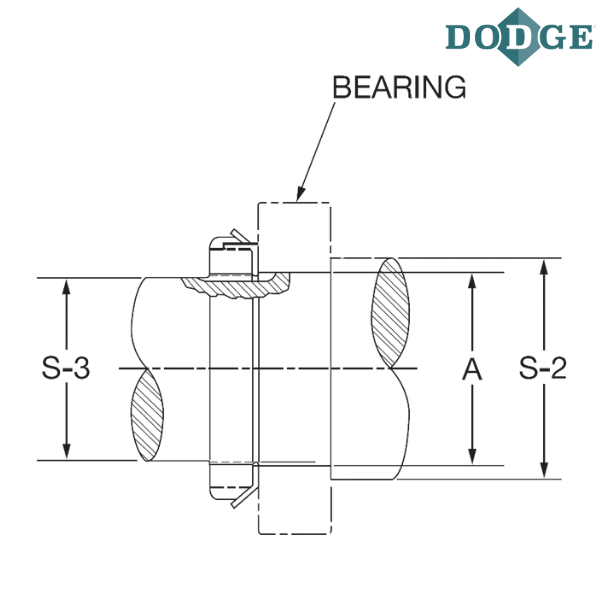

Bore Diameter (A) inch - 7.4803
Bore Diameter (A) mm - 190
Shaft Diameter (S-2) inch - 8.375
Shaft Diameter (S-2) inch - 7.25

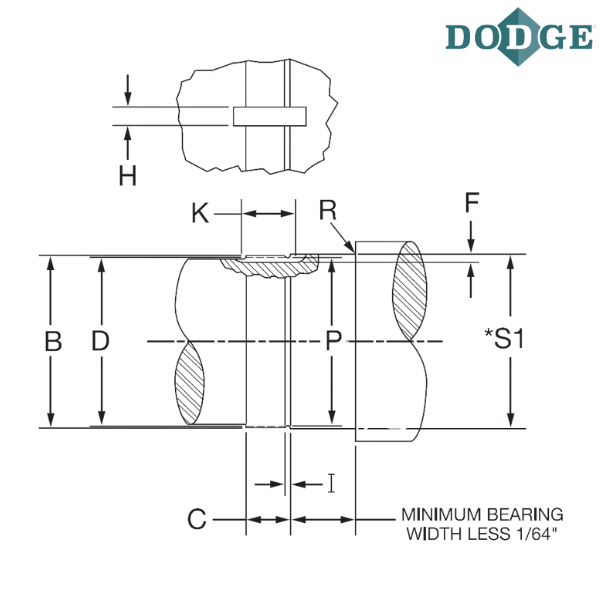

Depth (F) inch - 0.234375 (+1/64 or -Ø)
Width (H) inch - 0.75 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.65625
Maximum Radius (R) inch - 0.118
Threads Per Inch - 8
Maximum Thread Major Diameter (B) inch - 7.472
Minimum Thread Major Diameter (B) inch - 7.4568
Maximum Thread Pitch Diameter (D) inch - 7.3908
Minimum Thread Pitch Diameter (D) inch - 7.3817
Thread Length (C) inch - 1.28125 (+1/64 or -0)
Thread Relief (I) inch - 0.25 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 7.2873

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
