046766 DODGE - NWKIT-USAF-32

Brand - DODGE
Item Number - 046766 DODGE - NWKIT-USAF-32
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-32
Housing - 232

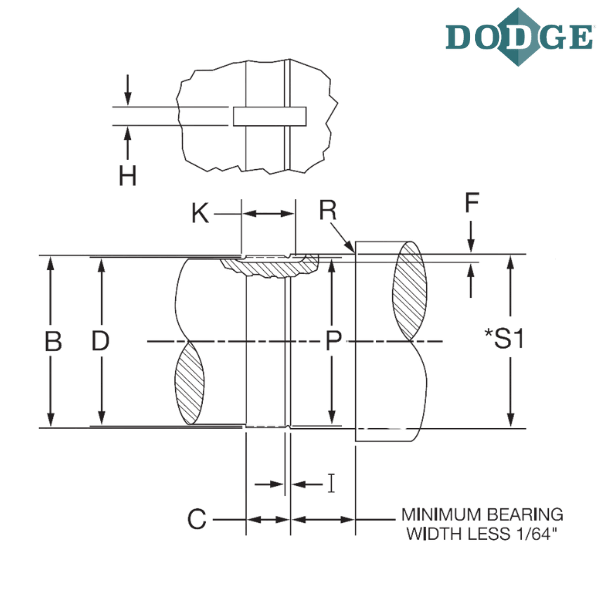

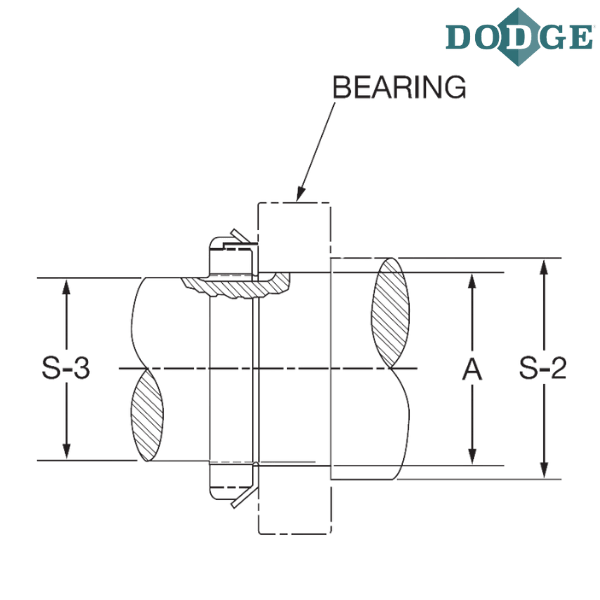

Bore Diameter (A) inch - 6.2992
Bore Diameter (A) mm - 160
Shaft Diameter (S-2) inch - 7
Shaft Diameter (S-2) inch - 6.0625
Depth (F) inch - 0.234375 (+1/64 or -Ø)
Width (H) inch - 0.625 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.5625
Maximum Radius (R) inch - 0.098
Threads Per Inch - 8
Maximum Thread Major Diameter (B) inch - 6.284
Minimum Thread Major Diameter (B) inch - 6.2688
Maximum Thread Pitch Diameter (D) inch - 6.2028
Minimum Thread Pitch Diameter (D) inch - 6.1937
Thread Length (C) inch - 1.1875 (+1/64 or -0)
Thread Relief (I) inch - 0.25 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 6.0993

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
