046764 DODGE - NWKIT-USAF-28

Brand - DODGE
Item Number - 046764 DODGE - NWKIT-USAF-28
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-28
Housing - 228

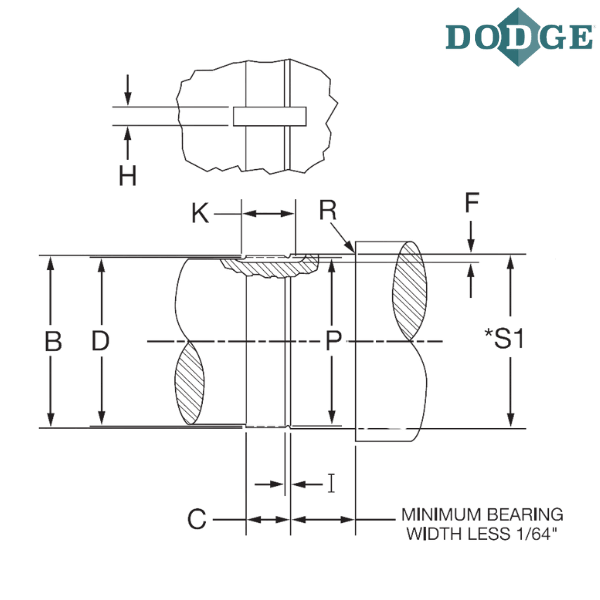

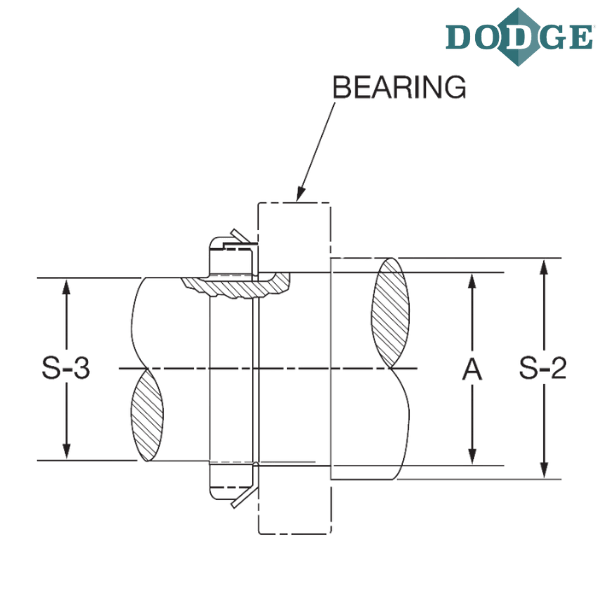

Bore Diameter (A) inch - 5.5118
Bore Diameter (A) mm - 140
Shaft Diameter (S-2) inch - 6.25
Shaft Diameter (S-2) inch - 5.3125
Depth (F) inch - 0.1875 (+1/64 or -Ø)
Width (H) inch - 0.625 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.375
Maximum Radius (R) inch - 0.098
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 5.497
Minimum Thread Major Diameter (B) inch - 5.4858
Maximum Thread Pitch Diameter (D) inch - 5.4429
Minimum Thread Pitch Diameter (D) inch - 5.4346
Thread Length (C) inch - 1.0625 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 5.3635

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
