046760 DODGE - NWKIT-USAF-20

Brand - DODGE
Item Number - 046760 DODGE - NWKIT-USAF-20
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-20
Housing - 220

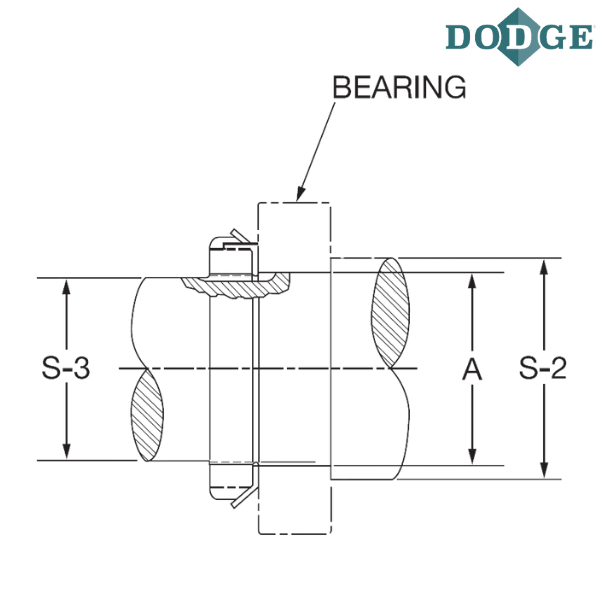

Bore Diameter (A) inch - 3.937
Bore Diameter (A) mm - 100
Shaft Diameter (S-2) inch - 4.5
Shaft Diameter (S-2) inch - 3.8125

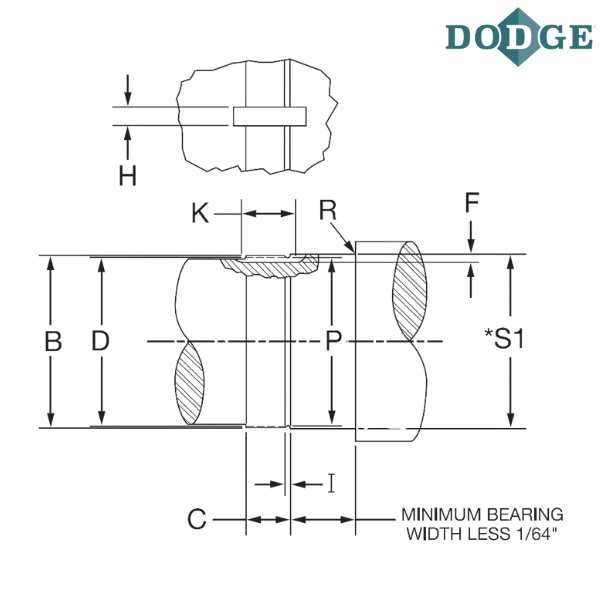

Depth (F) inch - 0.15625 (+1/64 or -Ø)
Width (H) inch - 0.375 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.1875
Maximum Radius (R) inch - 0.079
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 3.918
Minimum Thread Major Diameter (B) inch - 3.9068
Maximum Thread Pitch Diameter (D) inch - 3.8639
Minimum Thread Pitch Diameter (D) inch - 3.8565
Thread Length (C) inch - 0.875 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 3.7845

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
