046759 DODGE - NWKIT-USAF-18

Brand - DODGE
Item Number - 046759 DODGE - NWKIT-USAF-18
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-18
Housing - 218

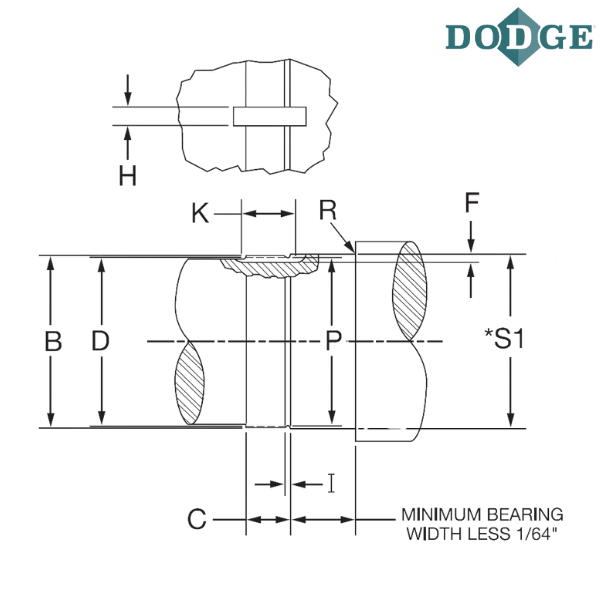

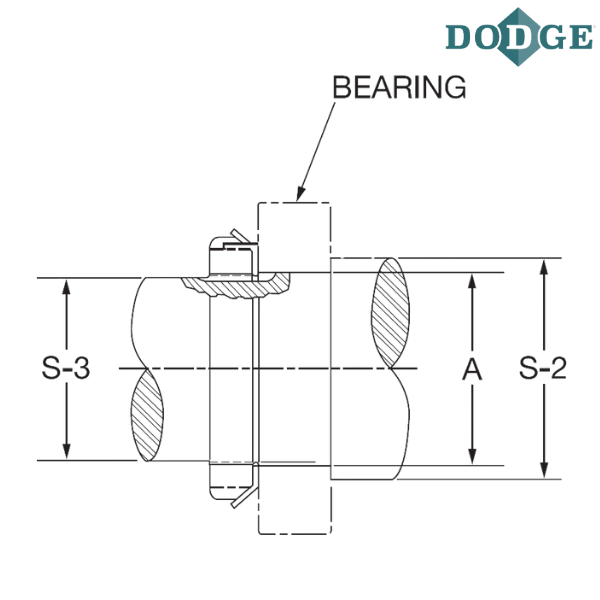

Bore Diameter (A) inch - 3.5433
Bore Diameter (A) mm - 90
Shaft Diameter (S-2) inch - 4.125
Shaft Diameter (S-2) inch - 3.375
Depth (F) inch - 0.15625 (+1/64 or -Ø)
Width (H) inch - 0.375 (+1/64 or -Ø)
Full Depth Length (K) inch - 1.0625
Maximum Radius (R) inch - 0.079
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 3.527
Minimum Thread Major Diameter (B) inch - 3.5158
Maximum Thread Pitch Diameter (D) inch - 3.4729
Minimum Thread Pitch Diameter (D) inch - 3.4655
Thread Length (C) inch - 0.8125 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 3.3935

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
