046757 DODGE - NWKIT-USAF-16

Brand - DODGE
Item Number - 046757 DODGE - NWKIT-USAF-16
Category - USAF 200 Series Locknut and Washer Kit
Description - NWKIT-USAF-16
Housing - 216

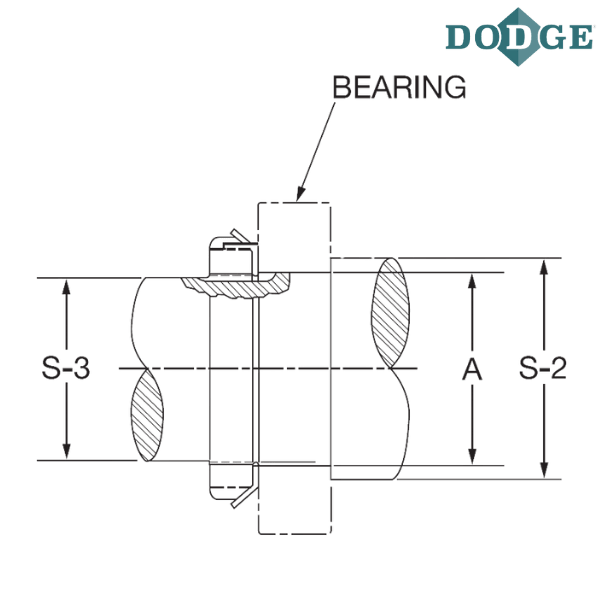

Bore Diameter (A) inch - 3.1496
Bore Diameter (A) mm - 80
Shaft Diameter (S-2) inch - 3.625
Shaft Diameter (S-2) inch - 3

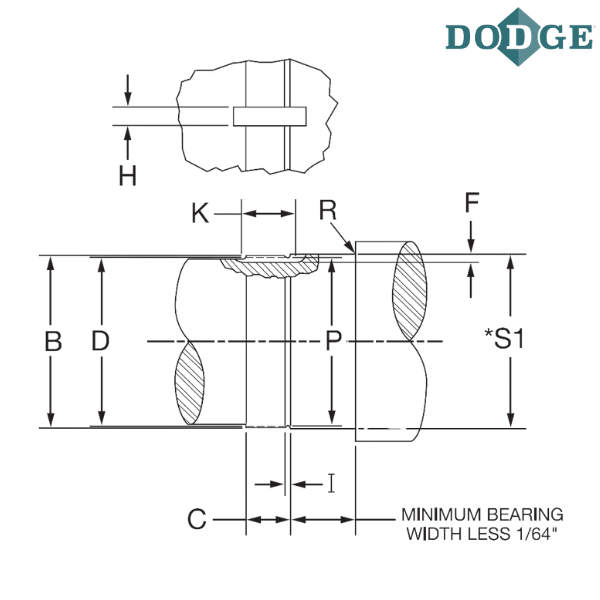

Depth (F) inch - 0.125 (+1/64 or -Ø)
Width (H) inch - 0.375 (+1/64 or -Ø)
Full Depth Length (K) inch - 0.9375
Maximum Radius (R) inch - 0.079
Threads Per Inch - 12
Maximum Thread Major Diameter (B) inch - 3.137
Minimum Thread Major Diameter (B) inch - 3.1258
Maximum Thread Pitch Diameter (D) inch - 3.0829
Minimum Thread Pitch Diameter (D) inch - 3.077
Thread Length (C) inch - 0.6875 (+1/64 or -0)
Thread Relief (I) inch - 0.15625 (+1/64 or -0)
Thread Relief Diameter (P) inch * - 3.0035

Notes :
USAF - UNIFIED SAF Pillow Block (Inch Dimensions)

* Tolerance ±.005 through 2.6672 dia.; ±.010 for larger sizes

** Images are for representation purposes only
