Description
Brand - DODGE
Item Number - 046682 DODGE - H2316-211
Category - USAF 600 Adapter Assembly (SNW)

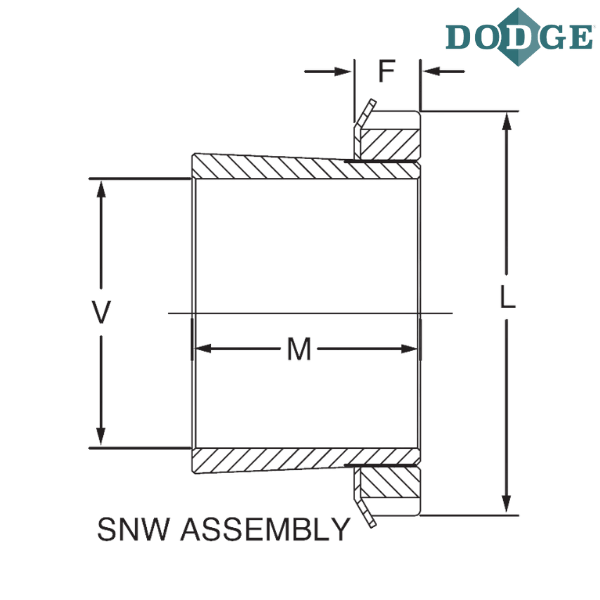

Shaft Diameter (V) inch - 2.6875
Housing - 616
Adapter Number - H2316-211
Approximate Weight (lbs) - 3
Outer Diameter (L) inch - 4.16
Maximum F (inch) - 0.69
M (inch) - 3.07
Notes :
H23 - Adapter Series for 22300K Series Bearings
** Images are for representation purposes only
