Description
Brand - DODGE
Item Number - 046680 DODGE - H2310-111
Category - USAF 600 Adapter Assembly (SNW)
Shaft Diameter (V) inch - 1.6875
Housing - 610
Adapter Number - H2310-111
Approximate Weight (lbs) - 0.8
Outer Diameter (L) inch - 2.69
Maximum F (inch) - 0.58
M (inch) - 2.17
Notes :
H23 - Adapter Series for 22300K Series Bearings

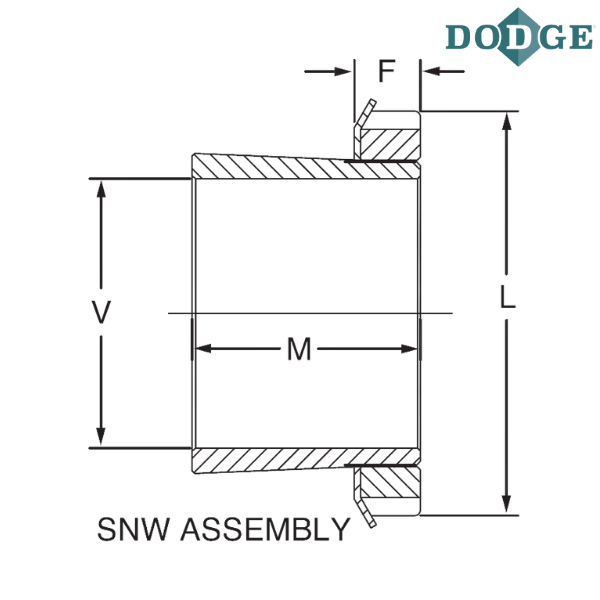

** Images are for representation purposes only
