Description
Brand - DODGE
Item Number - 046563 DODGE - H2334-600
Category - USAF 600 Adapter Assembly (SNW)

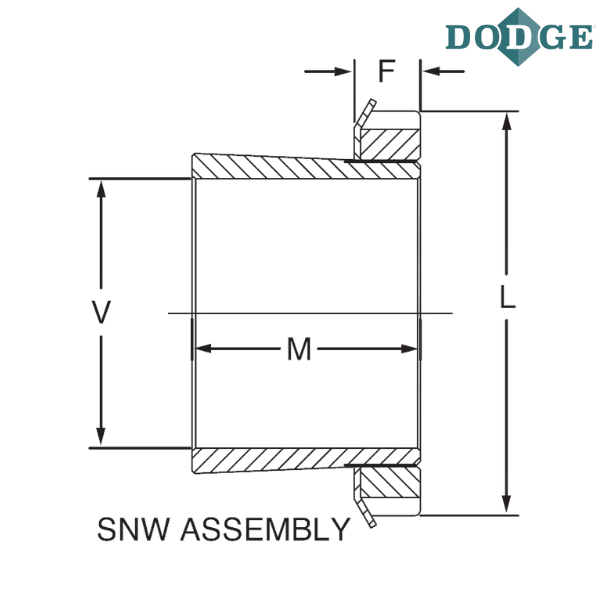

Shaft Diameter (V) inch - 6
Housing - 634
Adapter Number - H2334-600
Approximate Weight (lbs) - 21
Outer Diameter (L) inch - 8.66
Maximum F (inch) - 1.23
M (inch) - 8.06
Notes :
H23 - Adapter Series for 22300K Series Bearings
** Images are for representation purposes only
