Description

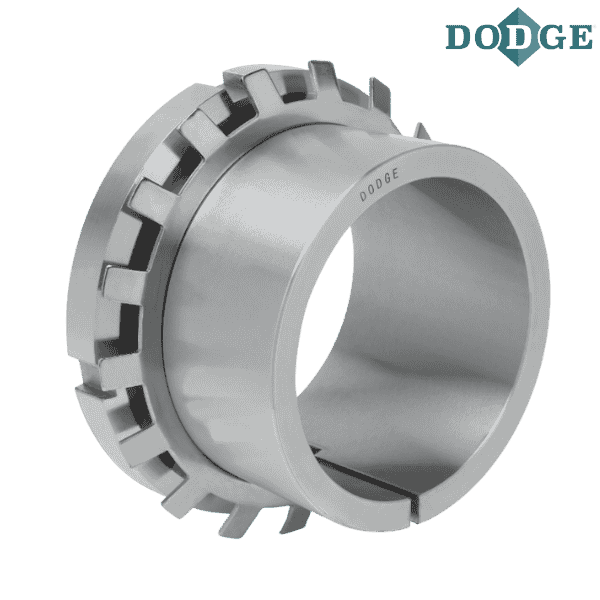

Brand - DODGE
Item Number - 046560 DODGE - H2330-503
Category - USAF 600 Adapter Assembly (SNW)

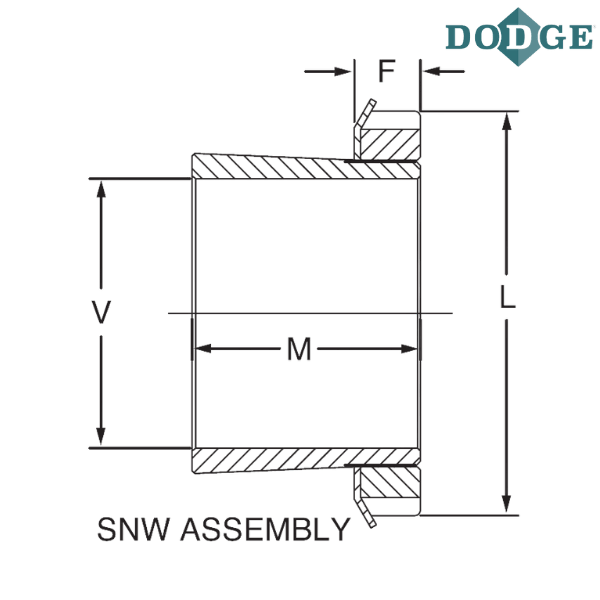

Shaft Diameter (V) inch - 5.1875
Housing - 630
Adapter Number - H2330-503
Approximate Weight (lbs) - 15.6
Outer Diameter (L) inch - 7.69
Maximum F (inch) - 1.08
M (inch) - 5.47
Notes :
H23 - Adapter Series for 22300K Series Bearings
** Images are for representation purposes only
