Description
Brand - DODGE
Item Number - 046559 DODGE - H2328-415
Category - USAF 600 Adapter Assembly (SNW)

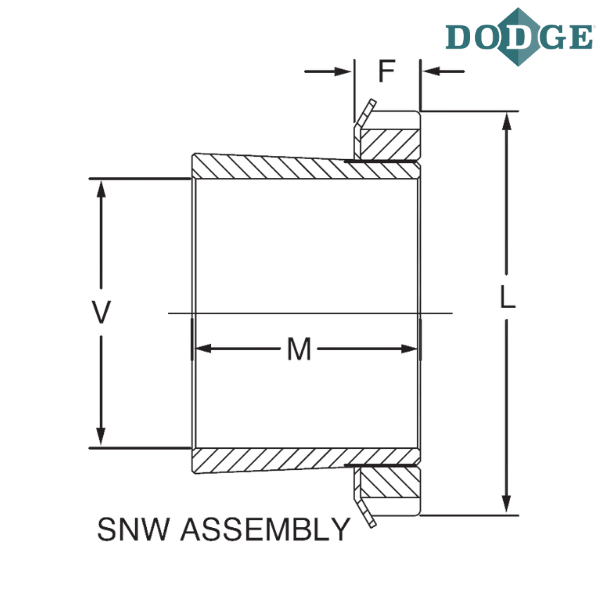

Shaft Diameter (V) inch - 4.9375
Housing - 628
Adapter Number - H2328-415
Approximate Weight (lbs) - 12
Outer Diameter (L) inch - 7.09
Maximum F (inch) - 1.02
M (inch) - 5.16
Notes :
H23 - Adapter Series for 22300K Series Bearings
** Images are for representation purposes only
