Description
Brand - DODGE
Item Number - 046556 DODGE - H2322-315
Category - USAF 600 Adapter Assembly (SNW)

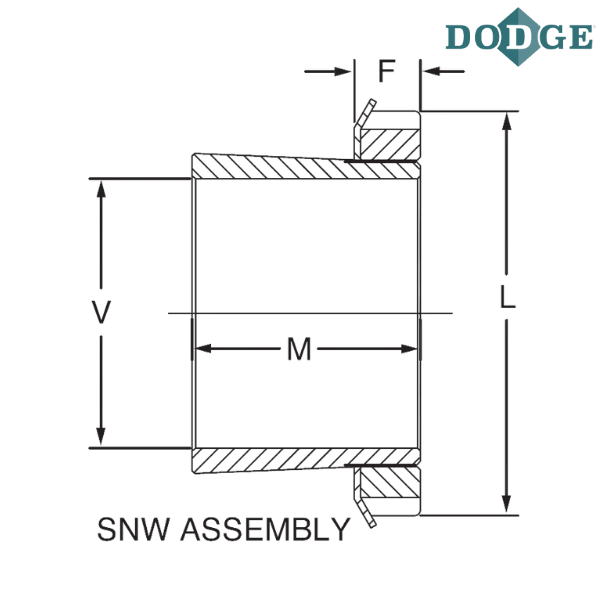

Shaft Diameter (V) inch - 3.9375
Housing - 622
Adapter Number - H2322-315
Approximate Weight (lbs) - 5.75
Outer Diameter (L) inch - 5.72
Maximum F (inch) - 0.86
M (inch) - 4.13
Notes :
H23 - Adapter Series for 22300K Series Bearings
** Images are for representation purposes only
