Description
Brand - DODGE
Item Number - 046554 DODGE - H2317-215
Category - USAF 600 Adapter Assembly (SNW)
Shaft Diameter (V) inch - 2.9375
Housing - 617
Adapter Number - H2317-215
Approximate Weight (lbs) - 3.2
Outer Diameter (L) inch - 4.41
Maximum F (inch) - 0.72
M (inch) - 3.23
Notes :
H23 - Adapter Series for 22300K Series Bearings

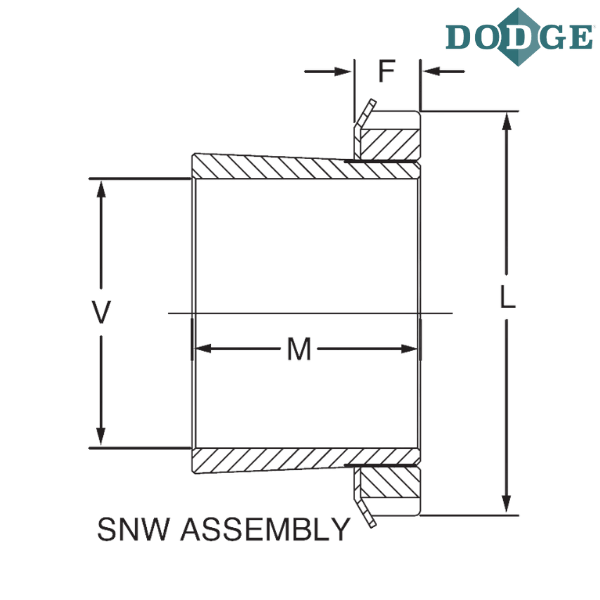

** Images are for representation purposes only
