Description
Brand - DODGE
Item Number - 046552 DODGE - H2313-203
Category - USAF 600 Adapter Assembly (SNW)
Shaft Diameter (V) inch - 2.1875
Housing - 613
Adapter Number - H2313-203
Approximate Weight (lbs) - 1.5
Outer Diameter (L) inch - 3.38
Maximum F (inch) - 0.64
M (inch) - 2.56
Notes :
H23 - Adapter Series for 22300K Series Bearings

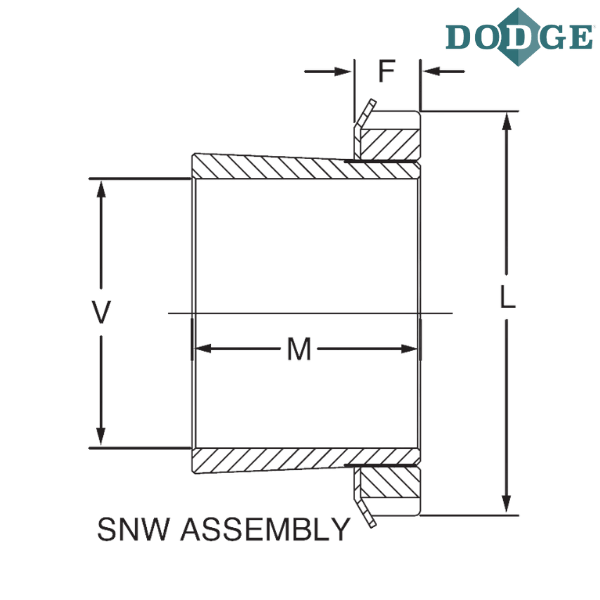

** Images are for representation purposes only
