Description
Brand - DODGE
Item Number - 046551 DODGE - H2311-115
Category - USAF 600 Adapter Assembly (SNW)
Shaft Diameter (V) inch - 1.9375
Housing - 611
Adapter Number - H2311-115
Approximate Weight (lbs) - 0.86
Outer Diameter (L) inch - 2.97
Maximum F (inch) - 0.58
M (inch) - 2.32
Notes :
H23 - Adapter Series for 22300K Series Bearings

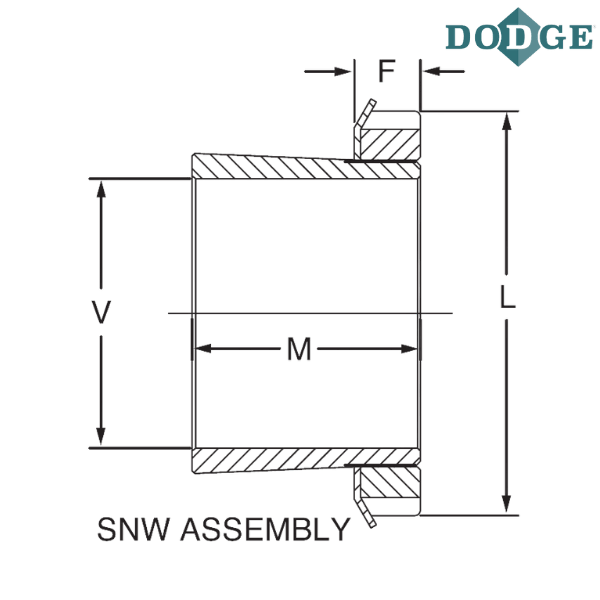

** Images are for representation purposes only
