Description
Brand - DODGE
Item Number - 046545 DODGE - SNW40-703
Category - USAF 500 Adaptor Assembly (SNW)

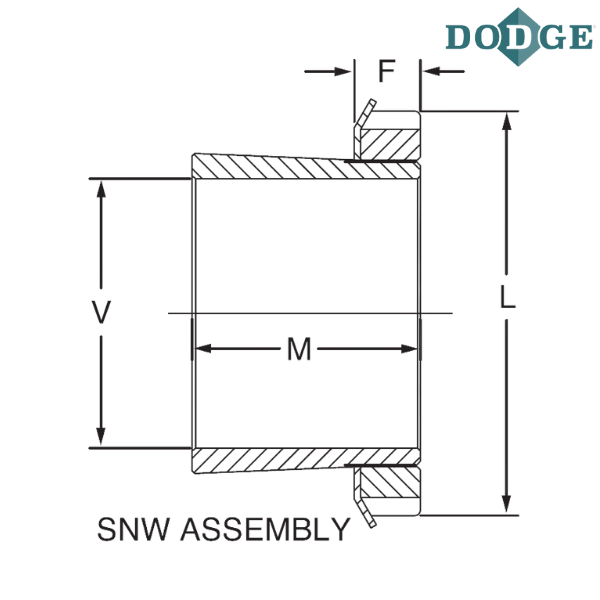

Shaft Diameter (V) inch - 7.1875
Housing - 540
SNW/SNP Number - SNW40-703
Approximate Weight (lbs) - 30.7
Outer Diameter (L) inch - 9.84
Maximum F (inch) - 1.36
Width (M) inch - 5.48
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
40 - Bearing Size
703 - Adapter Bore Size
** Images are for representation purposes only
