Description
Brand - DODGE

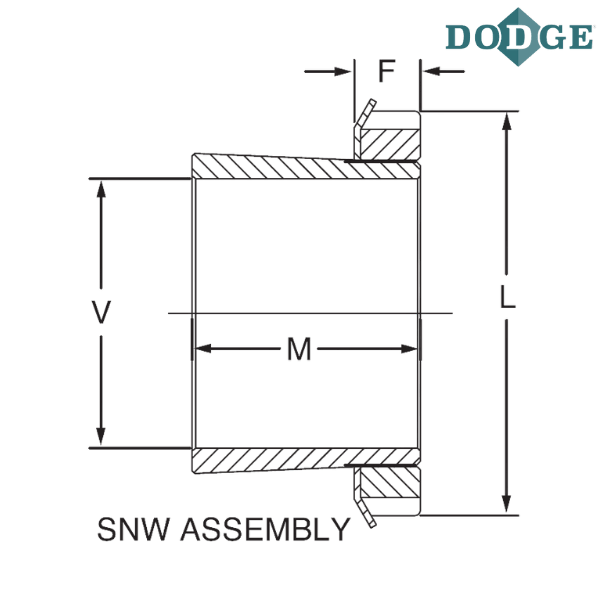

Item Number - 046432 DODGE - H3126-SNW-408
Category - USAF 500 Adaptor Assembly (SNW)
Shaft Diameter (V) inch - 4.5
Housing - 526
SNW/SNP Number - H3126-SNW-408
Approximate Weight (lbs) - 8.6
Outer Diameter (L) inch - 6.75
Maximum F (inch) - 0.95
Width (M) inch - 3.76
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
26 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
408 - Adapter Bore Size
** Images are for representation purposes only
