Description
Brand - DODGE

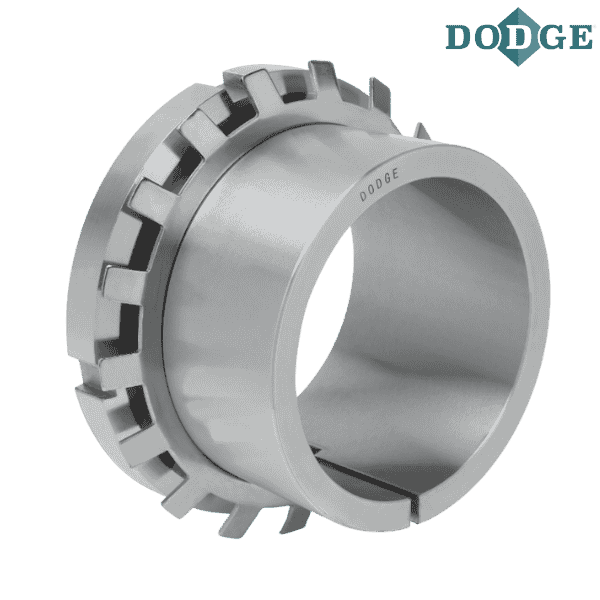

Item Number - 046363 DODGE - H322-SNW-315
Category - USAF 500 Adaptor Assembly (SNW)

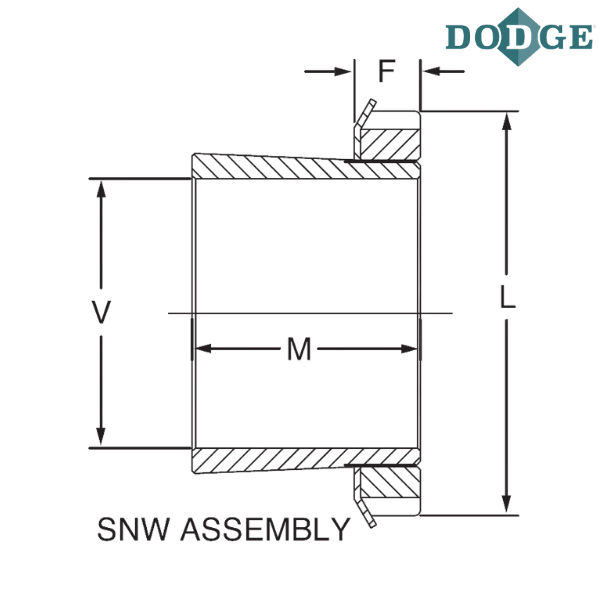

Shaft Diameter (V) inch - 3.9375
Housing - 522
SNW/SNP Number - H322-SNW-315
Approximate Weight (lbs) - 5.6
Outer Diameter (L) inch - 5.72
Maximum F (inch) - 0.86
Width (M) inch - 3.19
Notes :
H32 - Adapter Series for 23200K Series Bearings
22 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
315 - Adapter Bore Size
** Images are for representation purposes only
