Description
Brand - DODGE
Item Number - 046358 DODGE - H317-SNW-215
Category - USAF 500 Adaptor Assembly (SNW)

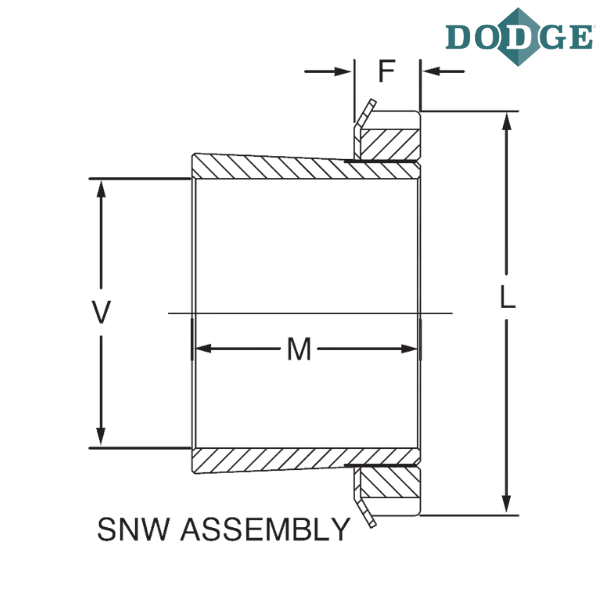

Shaft Diameter (V) inch - 2.9375
Housing - 517
SNW/SNP Number - H317-SNW-215
Approximate Weight (lbs) - 3
Outer Diameter (L) inch - 4.41
Maximum F (inch) - 0.72
Width (M) inch - 2.47
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
17 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
215 - Adapter Bore Size
** Images are for representation purposes only
