Description
Brand - DODGE
Item Number - 046353 DODGE - H313-SNW-203
Category - USAF 500 Adaptor Assembly (SNW)

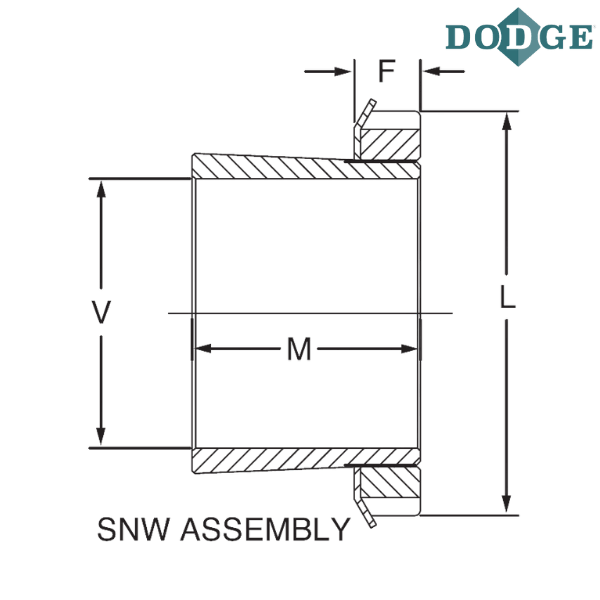

Shaft Diameter (V) inch - 2.1875
Housing - 513
SNW/SNP Number - H313-SNW-203
Approximate Weight (lbs) - 1.6
Outer Diameter (L) inch - 3.38
Maximum F (inch) - 0.64
Width (M) inch - 2.1
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
13 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
203 - Adapter Bore Size
** Images are for representation purposes only
