Description
Brand - DODGE

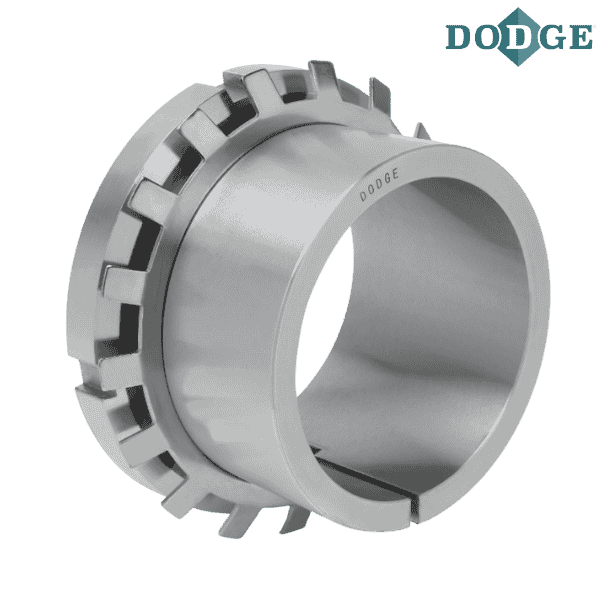

Item Number - 046350 DODGE - H309-SNW-107
Category - USAF 500 Adaptor Assembly (SNW)

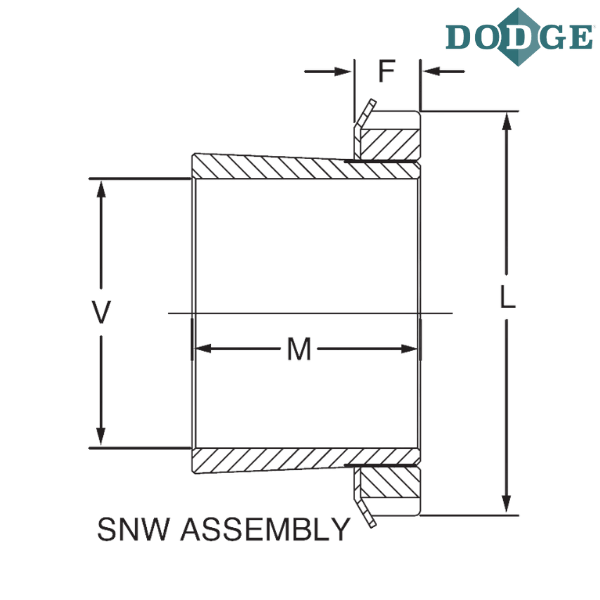

Shaft Diameter (V) inch - 1.4375
Housing - 509
SNW/SNP Number - H309-SNW-107
Approximate Weight (lbs) - 1
Outer Diameter (L) inch - 2.53
Maximum F (inch) - 0.52
Width (M) inch - 1.58
Notes :
H3 - Adapter Series for 22200K Series Bearings thru 4” Bore Size
09 - Bearing Size
SNW - Sleeve, Nut and Washer Assembly thru 544 (8”) Size
107 - Adapter Bore Size
** Images are for representation purposes only
