Description
Brand - DODGE
Item Number - 045434 DODGE - H3172-SNP-1308
Category - USDAF SNP Adapter Assembly
Housing - 3172
Bearing Number - 23172K
SNP Number - H3172-SNP-1308
Approximate Weight (kg) - 116.3

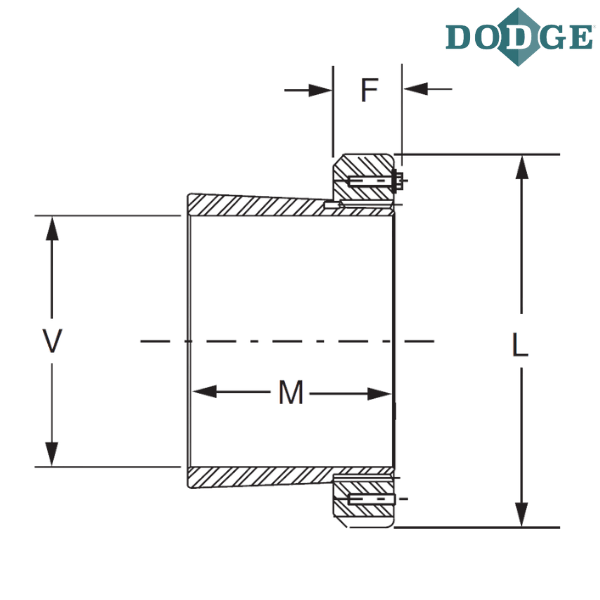

Shaft Size (V) inch - 13.5
Outer Diameter (L) inch - 16.51
F (inch) - 2.16
M (inch) - 9.85
Notes :
H31 - Adapter Series for 22200K & 23100K Series Bearings Greater Than 4”
SNP - Sleeve Nut and Plate Assembly from 048 thru 084, 3156 thru 3176, & 3252 thru 3268
** Images are for representation purposes only
