043976 DODGE - P4B32-SS-507

Brand - DODGE
Item Number - 043976 DODGE - P4B32-SS-507
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 5.4375
Description - P4B32-SS-507
Housing W/ Stab Ring Item Number - 044040 DODGE - H4S-532-USAF
Bearing Item Number - 043410 DODGE - BRG32SS507
Dynamic Capacity (C) lbs - 190000
Maximum RPM (Grease) - 950
Split LER Seal Item Number - 043519 DODGE - 60SS507
Housing - 532

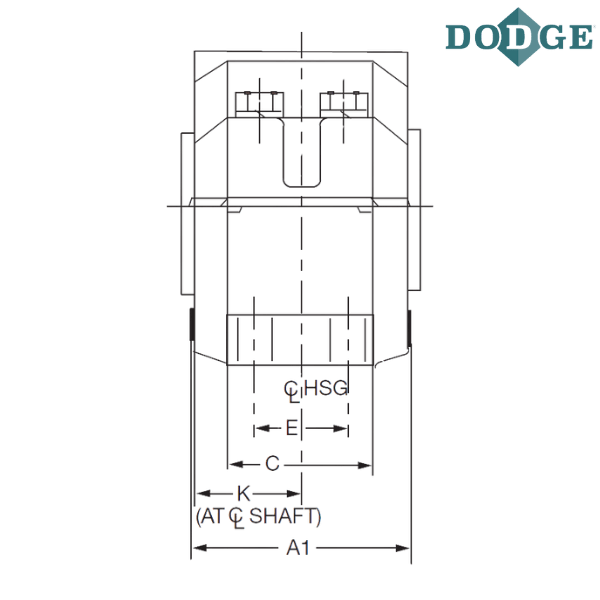

A1 (inch) - 9.92

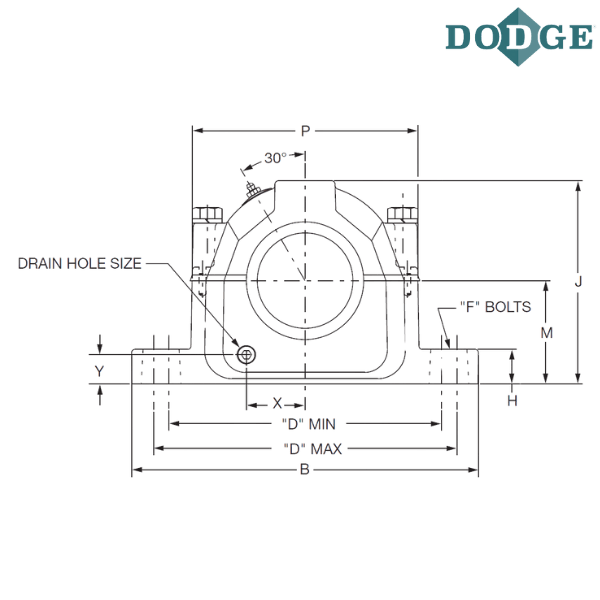

Overall Length (B) inch - 21.66
C (inch) - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 17.38
Bolt to Bolt Maximum Distance (D max) inch - 19.25
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
H (inch) - 2.34
Overall Height (J) inch - 13.31
K (inch) - 4.63
Base to Center Height (M) inch - 6.69
P (inch) - 14.91

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
507 - 5-7/16”

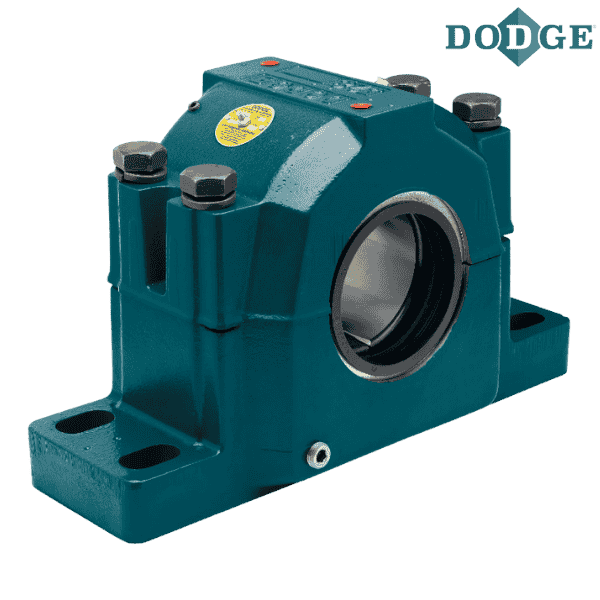

** Images are for representation purposes only
