043972 DODGE - P4B26-SS-407

Brand - DODGE
Item Number - 043972 DODGE - P4B26-SS-407
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 4.4375
Description - P4B26-SS-407
Housing W/ Stab Ring Item Number - 044031 DODGE - H4S-526-USAF
Bearing Item Number - 043407 DODGE - BRG26SS407
Dynamic Capacity (C) lbs - 120000
Maximum RPM (Grease) - 1200
Split LER Seal Item Number - 043514 DODGE - 54SS407
Housing - 526

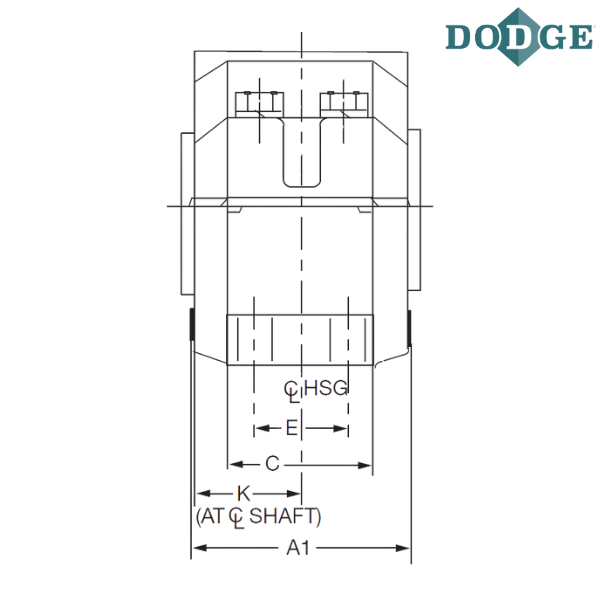

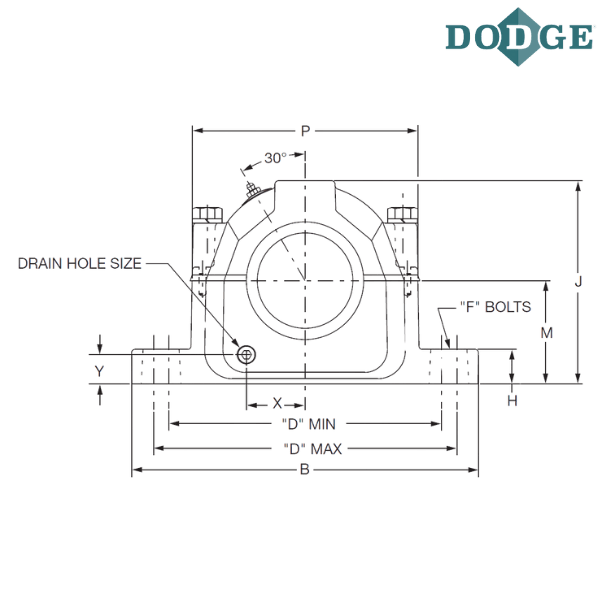

A1 (inch) - 8.27
Overall Length (B) inch - 18.38
C (inch) - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 14.5
Bolt to Bolt Maximum Distance (D max) inch - 16
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
H (inch) - 2.06
Overall Height (J) inch - 11.53
K (inch) - 3.75
Base to Center Height (M) inch - 6
P (inch) - 12.41

Notes :

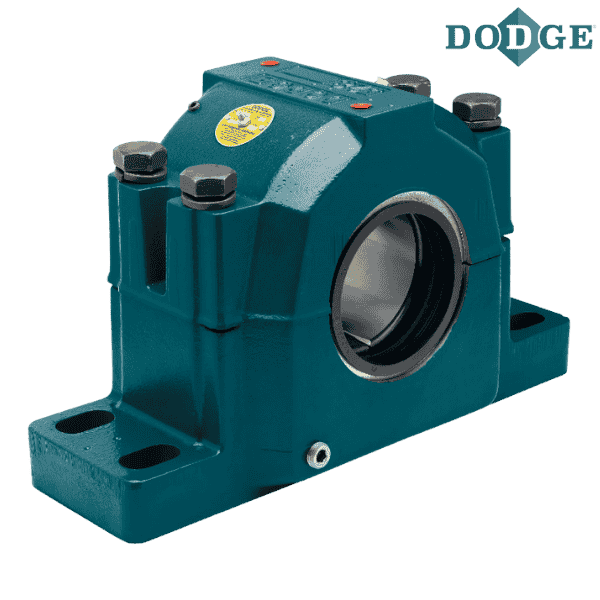

P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
407 - 4-7/16”

** Images are for representation purposes only
