Description
Brand - DODGE
Item Number - 043971 DODGE - P4B24-SS-403
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 4.1875
Description - P4B24-SS-403
Housing W/ Stab Ring Item Number - 044202 DODGE - H4S-524-USAF
Bearing Item Number - 043421 DODGE - BRG24SS403
Dynamic Capacity (C) lbs - 102000
Maximum RPM (Grease) - 1300
Split LER Seal Item Number - 043513 DODGE - 52SS403
Housing - 524
Notes :

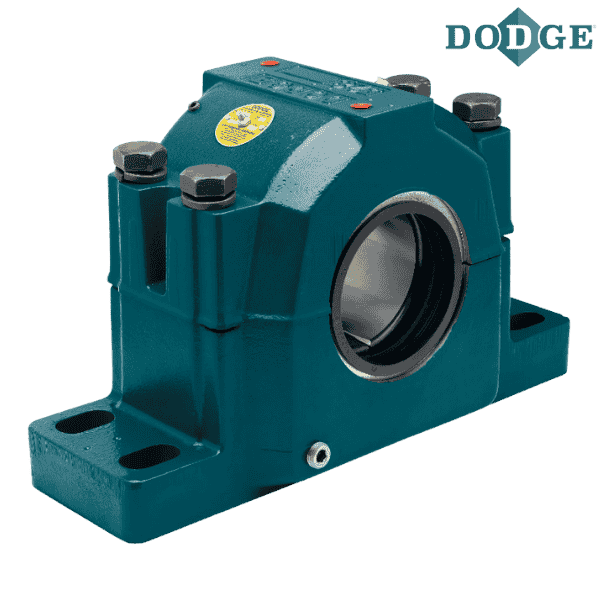

P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
403 - 4-3/16”
** Images are for representation purposes only
