043965 DODGE - P4B16-SS-211

Brand - DODGE
Item Number - 043965 DODGE - P4B16-SS-211
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 2.6875
Description - P4B16-SS-211
Housing W/ Stab Ring Item Number - 044007 DODGE - H4S-516-USAF
Bearing Item Number - 043401 DODGE - BRG16SS211
Dynamic Capacity (C) lbs - 40500
Maximum RPM (Grease) - 2300
Split LER Seal Item Number - 043504 DODGE - 24SS211
Housing - 516

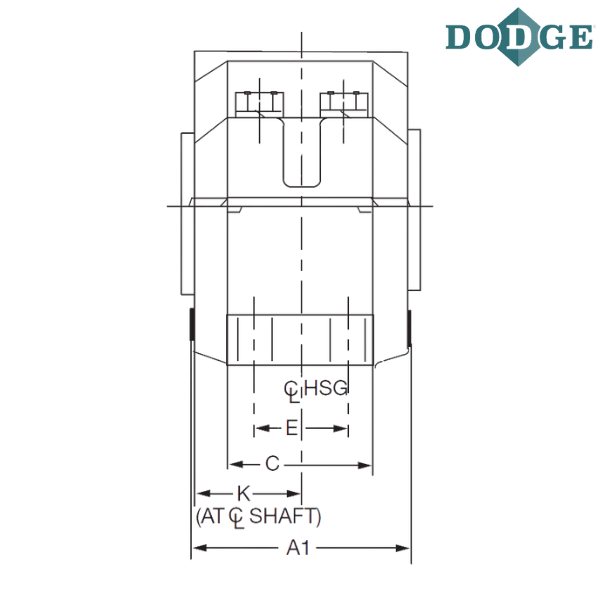

A1 (inch) - 5.44

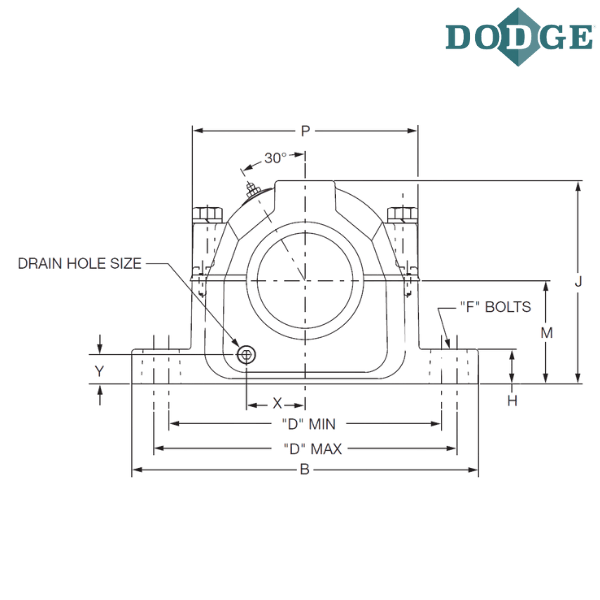

Overall Length (B) inch - 12.59
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.63
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
H (inch) - 1.06
Overall Height (J) inch - 6.75
K (inch) - 2.42
Base to Center Height (M) inch - 3.5
P (inch) - 7.94

Notes :
P4B - 4 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
211 - 2-11/16”

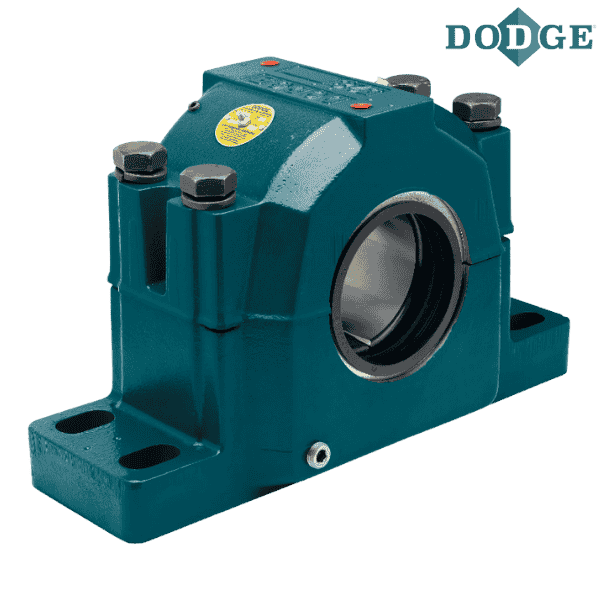

** Images are for representation purposes only
