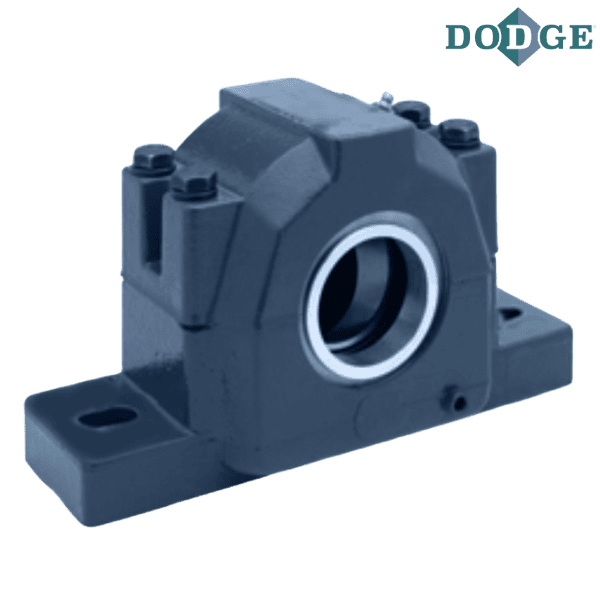

043961 DODGE - P2B17-SS-215

Brand - DODGE
Item Number - 043961 DODGE - P2B17-SS-215
Category - USAF 500 SPLIT-SPHER Pillow Block
Shaft Size (S-1) inch - 2.9375
Description - P2B17-SS-215
Housing W/ Stab Ring Item Number - 044010 DODGE - H2S-517-USAF
Bearing Item Number - 043402 DODGE - BRG17SS215
Dynamic Capacity (C) lbs - 41500
Maximum RPM (Grease) - 2200
Split LER Seal Item Number - 043506 DODGE - 28SS215
Housing - 517

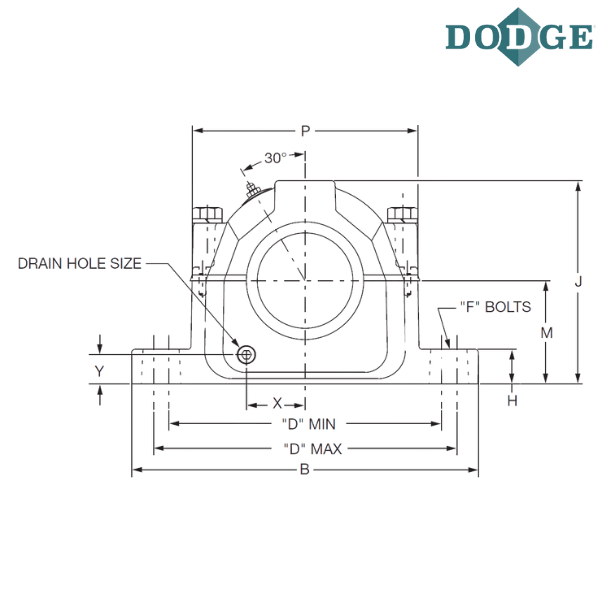

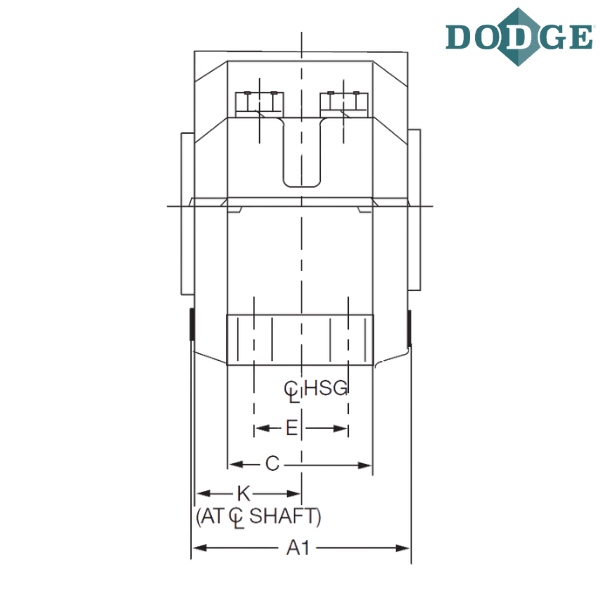

A1 (inch) - 5.39
Overall Length (B) inch - 12.59
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 9.88
Bolt to Bolt Maximum Distance (D max) inch - 11
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.25
Overall Height (J) inch - 7.38
K (inch) - 2.47
Base to Center Height (M) inch - 3.75
P (inch) - 8.19

Notes :
P2B - 2 Bolt Base Pillow Block, Cast Iron, Both Ends Open
SS - SPLIT-SPHER Pillow Block
215 - 2-15/16”

** Images are for representation purposes only
