Description
Brand - DODGE
Item Number - 043633 DODGE - SNP056-1000
Category - USAF 500 Adaptor Assembly (SNW)

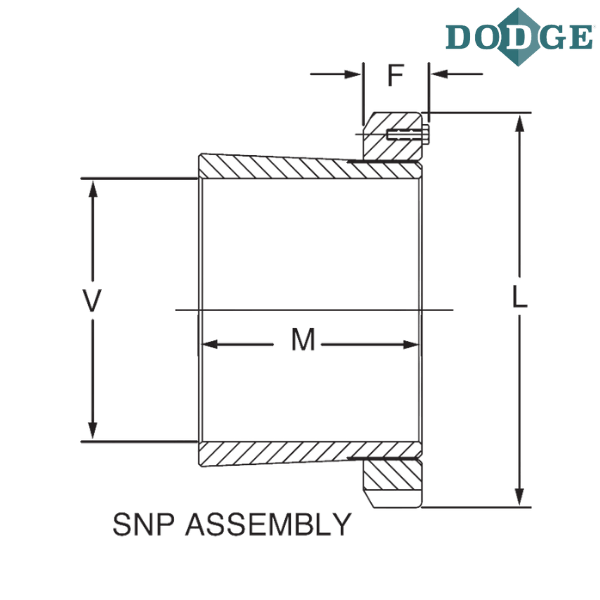

Shaft Diameter (V) inch - 10
Housing - 056
SNW/SNP Number - SNP056-1000
Approximate Weight (lbs) - 42
Outer Diameter (L) inch - 13
Maximum F (inch) - 1.89
Width (M) inch - 6.19
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
056 - Bearing Size
1000 - Adapter Bore Size
** Images are for representation purposes only
