Description
Brand - DODGE
Item Number - 043631 DODGE - SNP048-815
Category - USAF 500 Adaptor Assembly (SNW)

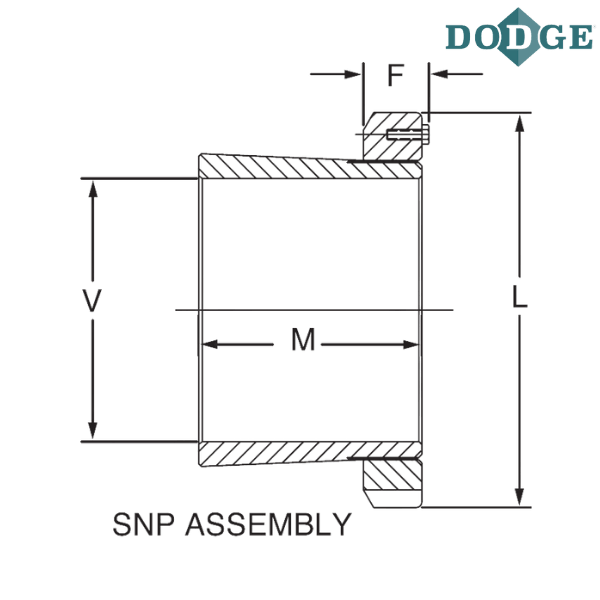

Shaft Diameter (V) inch - 8.9375
Housing - 048
SNW/SNP Number - SNP048-815
Approximate Weight (lbs) - 28
Outer Diameter (L) inch - 11.44
Maximum F (inch) - 1.73
Width (M) inch - 5.44
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
048 - Bearing Size
815 - Adapter Bore Size

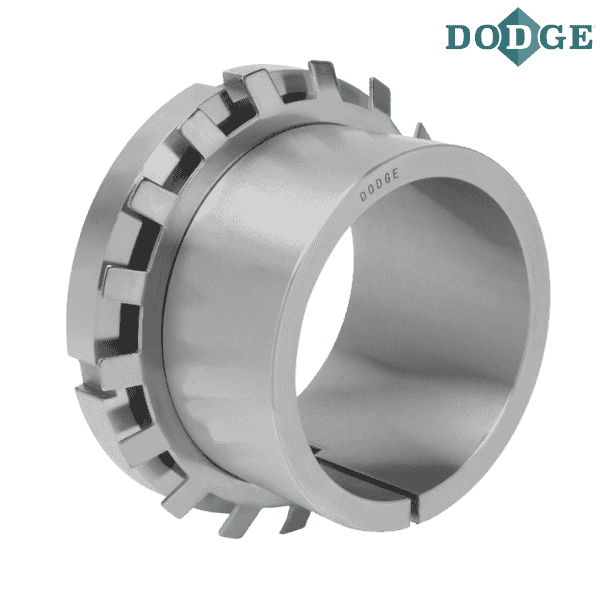

** Images are for representation purposes only
