Description
Brand - DODGE
Item Number - 043630 DODGE - SNP048-808
Category - USAF 500 Adaptor Assembly (SNW)

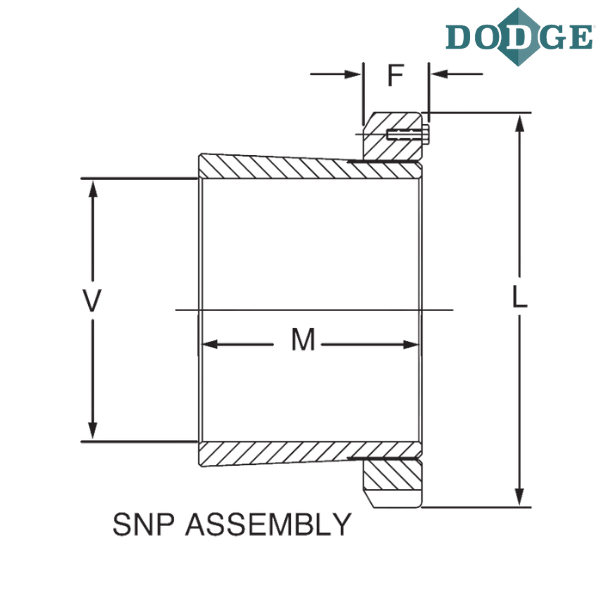

Shaft Diameter (V) inch - 8.5
Housing - 048
SNW/SNP Number - SNP048-808
Approximate Weight (lbs) - 30
Outer Diameter (L) inch - 11.44
Maximum F (inch) - 1.73
Width (M) inch - 5.44
Notes :
SNP - Sleeve, Nut and Lockplate Assembly 048 (8-7/16”) and Larger Sizes
048 - Bearing Size
808 - Adapter Bore Size
** Images are for representation purposes only
