Description
Brand - DODGE
Item Number - 043628 DODGE - SNW44-800
Category - USAF 500 Adaptor Assembly (SNW)

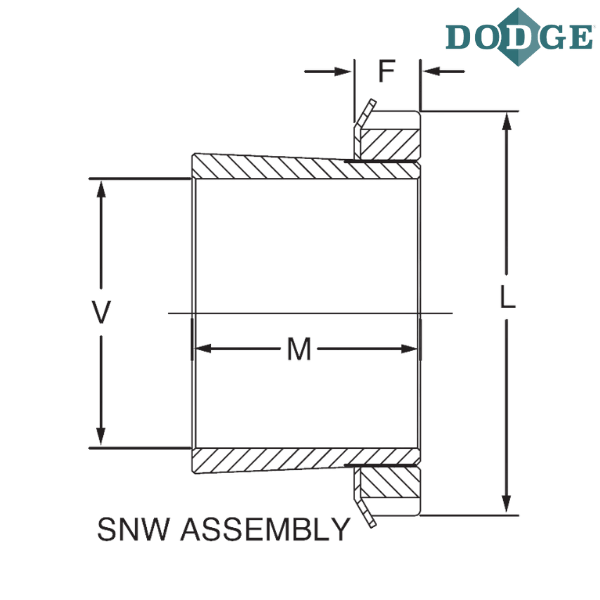

Shaft Diameter (V) inch - 8
Housing - 544
SNW/SNP Number - SNW44-800
Approximate Weight (lbs) - 34.7
Outer Diameter (L) inch - 11
Maximum F (inch) - 1.42
Width (M) inch - 5.9
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
44 - Bearing Size
800 - Adapter Bore Size
** Images are for representation purposes only
