Description
Brand - DODGE
Item Number - 043627 DODGE - SNW44-708
Category - USAF 500 Adaptor Assembly (SNW)

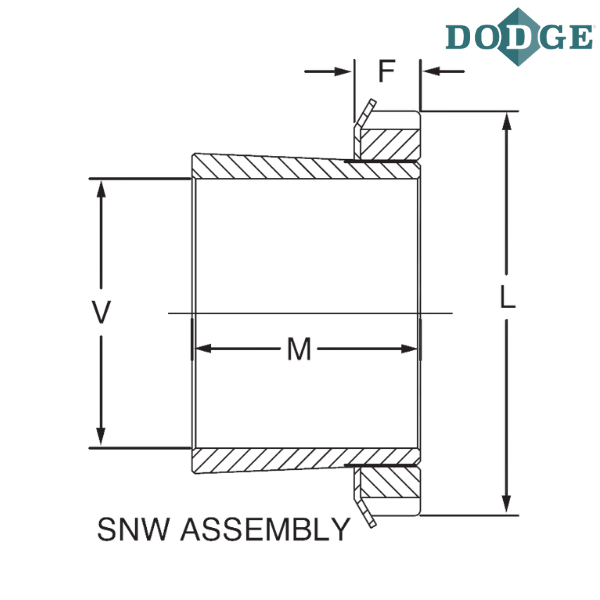

Shaft Diameter (V) inch - 7.5
Housing - 544S
SNW/SNP Number - SNW44-708
Approximate Weight (lbs) - 30.2
Outer Diameter (L) inch - 11
Maximum F (inch) - 1.42
Width (M) inch - 5.9
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
44 - Bearing Size
708 - Adapter Bore Size
** Images are for representation purposes only
