Description
Brand - DODGE
Item Number - 043626 DODGE - SNW44-715
Category - USAF 500 Adaptor Assembly (SNW)

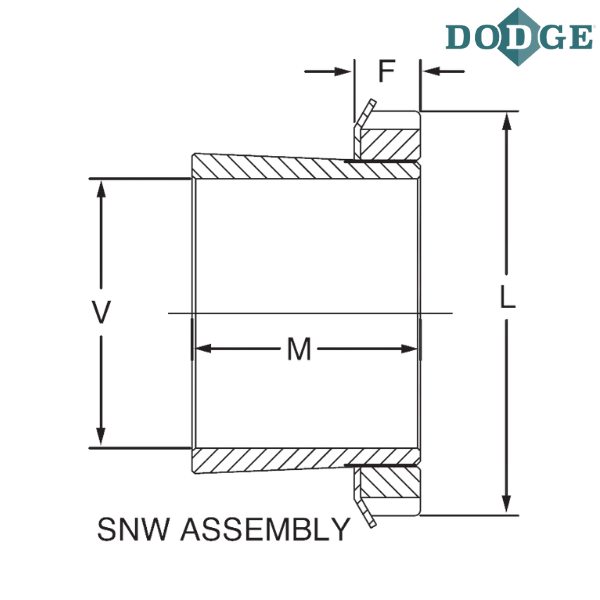

Shaft Diameter (V) inch - 7.9375
Housing - 544
SNW/SNP Number - SNW44-715
Approximate Weight (lbs) - 36
Outer Diameter (L) inch - 11
Maximum F (inch) - 1.42
Width (M) inch - 5.9
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
44 - Bearing Size
715 - Adapter Bore Size
** Images are for representation purposes only
