Description
Brand - DODGE
Item Number - 043623 DODGE - SNW36-608
Category - USAF 500 Adaptor Assembly (SNW)

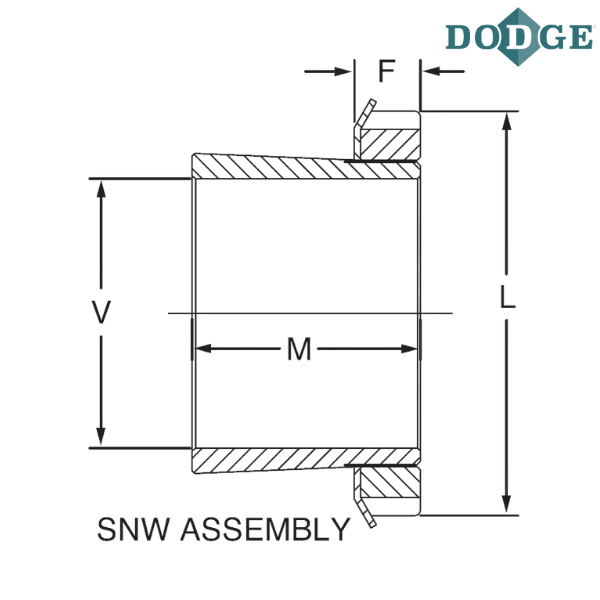

Shaft Diameter (V) inch - 6.5
Housing - 536
SNW/SNP Number - SNW36-608
Approximate Weight (lbs) - 18
Outer Diameter (L) inch - 9.06
Maximum F (inch) - 1.27
Width (M) inch - 5.02
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
36 - Bearing Size
608 - Adapter Bore Size
** Images are for representation purposes only
