Description
Brand - DODGE
Item Number - 043620 DODGE - SNW34-515
Category - USAF 500 Adaptor Assembly (SNW)
Shaft Diameter (V) inch - 5.9375
Housing - 534
SNW/SNP Number - SNW34-515
Approximate Weight (lbs) - 17.6
Outer Diameter (L) inch - 8.66
Maximum F (inch) - 1.23
Width (M) inch - 4.83
Notes :

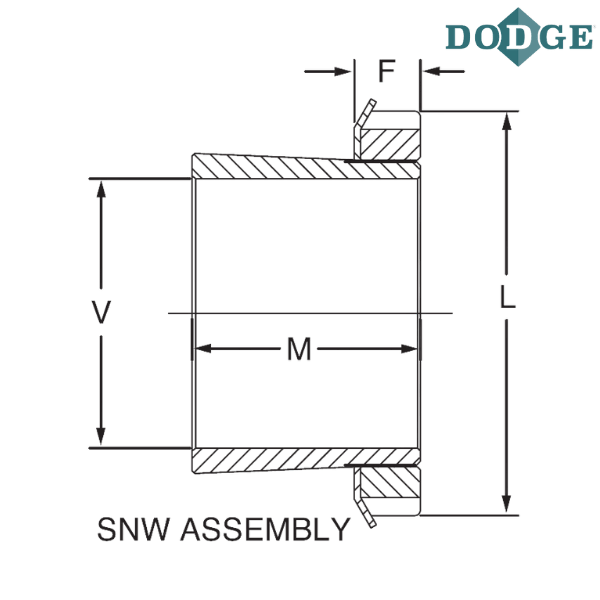

SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
34 - Bearing Size
515 - Adapter Bore Size
** Images are for representation purposes only
