Description
Brand - DODGE
Item Number - 043619 DODGE - SNW32-507
Category - USAF 500 Adaptor Assembly (SNW)

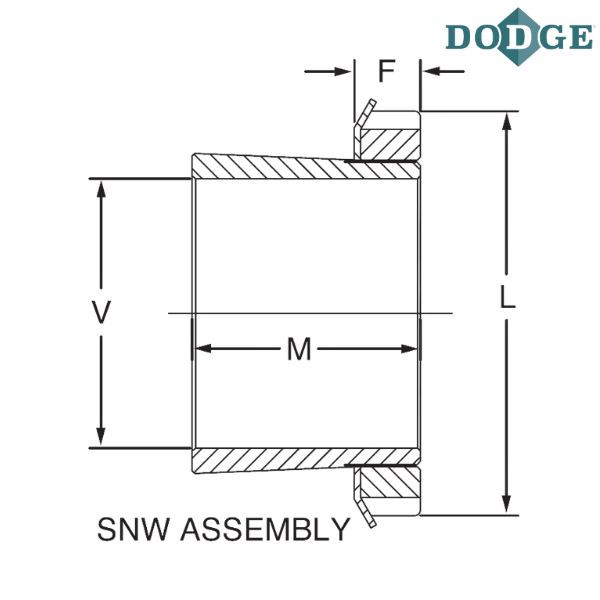

Shaft Diameter (V) inch - 5.4375
Housing - 532
SNW/SNP Number - SNW32-507
Approximate Weight (lbs) - 15.9
Outer Diameter (L) inch - 8.06
Maximum F (inch) - 1.14
Width (M) inch - 4.57
Notes :
SNW - Sleeve, Nut and Washer Assembly thru 44 (8 inch) Size
32 - Bearing Size
507 - Adapter Bore Size
** Images are for representation purposes only
